523002B00000G

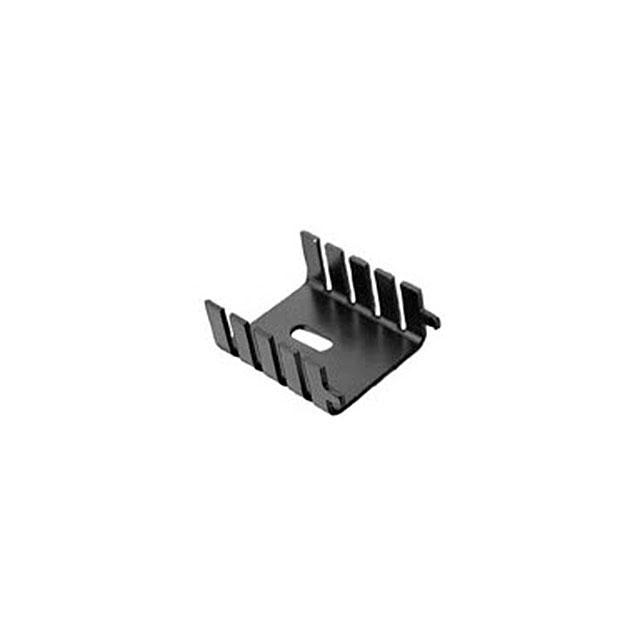

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 523002B00000G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 523002B00000G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 523002B00000G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK TO-220 W/TAB BLACK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.25 | $0.237 | $0.225 | $0.219 | $0.216 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.202 | $0.19 | $0.172 | $0.166 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 523002B00000G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK TO-220 W/TAB BLACK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 132207 pcs | Data sheet | 523002x00000GStandard Heatsinks Catalog |
| Category | Fans, Thermal Management | Width | 1.000" (25.40mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 13.60°C/W |
| Thermal Resistance @ Forced Air Flow | 6.00°C/W @ 300 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 1.0W @ 20°C |
| Package Cooled | TO-220 | Other Names | 001548 523002B00000 6230B |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 1.180" (29.97mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.500" (12.70mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 Aluminum 1.0W @ 20°C Board Level, Vertical | Attachment Method | Bolt On and PC Pin |
