508500B00000G

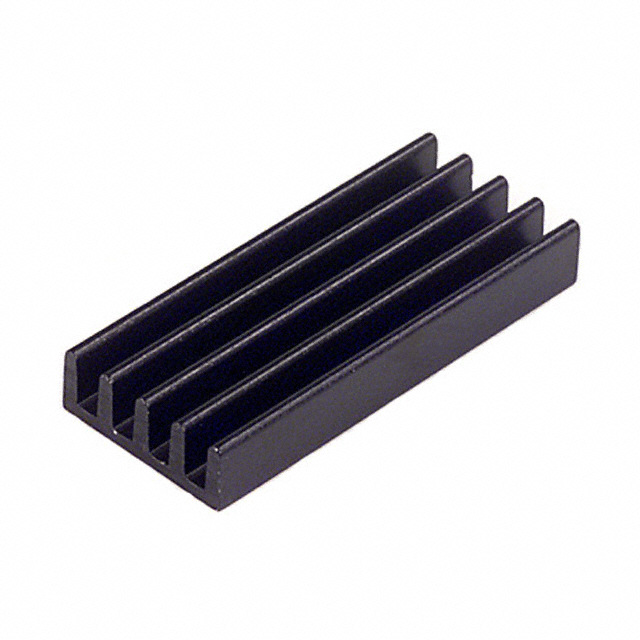

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 508500B00000G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 508500B00000G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 508500B00000G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK 24-PIN DIP GLUE-ON BLK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.285 | $0.273 | $0.259 | $0.253 | $0.249 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.232 | $0.218 | $0.198 | $0.191 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 508500B00000G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK 24-PIN DIP GLUE-ON BLK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 111676 pcs | Data sheet | Standard Heatsinks Catalog508x00B00000G |
| Category | Fans, Thermal Management | Width | 0.530" (13.46mm) |
| Type | Top Mount | Thermal Resistance @ Natural | 34.00°C/W |
| Thermal Resistance @ Forced Air Flow | 15.00°C/W @ 500 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 1.0W @ 40°C |
| Package Cooled | 24-DIP | Other Names | 001409 508500B00000 6085B HS273 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 1.250" (31.75mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.190" (4.83mm) | Diameter | - |
| Detailed Description | Heat Sink 24-DIP Aluminum 1.0W @ 40°C Top Mount | Attachment Method | Thermal Tape, Adhesive (Not Included) |
