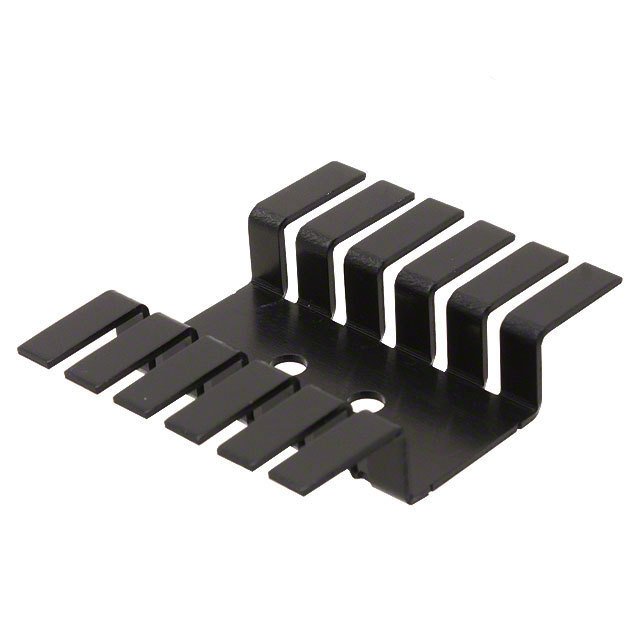

507222B00000G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 507222B00000G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 507222B00000G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 507222B00000G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK TO-220 DUAL 10W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.253 | $0.242 | $0.23 | $0.224 | $0.221 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.206 | $0.194 | $0.176 | $0.17 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 507222B00000G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK TO-220 DUAL 10W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 141620 pcs | Data sheet | Standard Heatsinks Catalog50(6,7)xx2B0xx00G |
| Category | Fans, Thermal Management | Width | 1.750" (44.45mm) |
| Type | Board Level | Thermal Resistance @ Natural | 9.60°C/W |
| Thermal Resistance @ Forced Air Flow | 3.00°C/W @ 200 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 8.0W @ 70°C |
| Package Cooled | TO-220 (Dual) | Other Names | 001347 507222B00000 5072B 6072B HS114 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 1.470" (37.34mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.375" (9.52mm) | Diameter | - |
| Detailed Description | Heat Sink TO-220 (Dual) Aluminum 8.0W @ 70°C Board Level | Attachment Method | Bolt On |
