501303B00000G

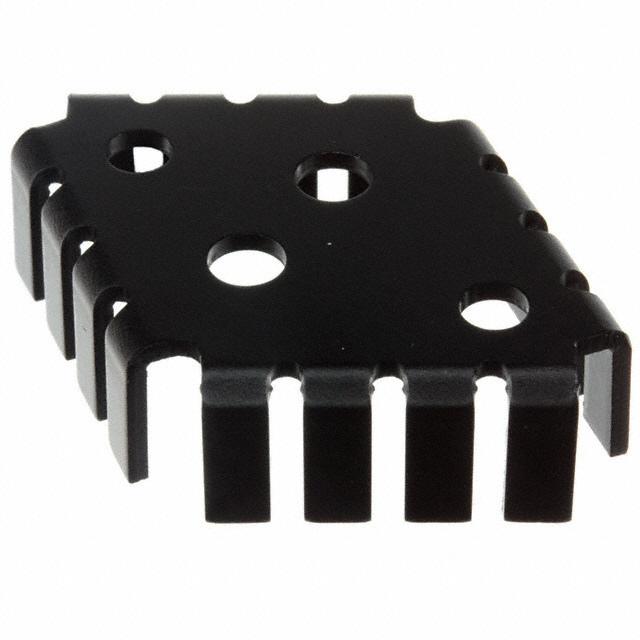

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 501303B00000G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 501303B00000G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 501303B00000G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEAT SINK TO-3 .500" COMPACT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.385 | $0.365 | $0.356 | $0.346 | $0.327 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.308 | $0.288 | $0.269 | $0.26 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 501303B00000G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEAT SINK TO-3 .500" COMPACT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 74148 pcs | Data sheet | Standard Heatsinks Catalog501x03B00000G Datasheet |
| Category | Fans, Thermal Management | Width | 1.400" (35.56mm) |
| Type | Board Level | Thermal Resistance @ Natural | 12.00°C/W |
| Thermal Resistance @ Forced Air Flow | 4.00°C/W @ 300 LFM | Shape | Rhombus |
| Series | - | Power Dissipation @ Temperature Rise | 2.0W @ 30°C |
| Package Cooled | TO-3 | Other Names | 001132 501303B00000 5013B 6013B HS148 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 1.880" (47.75mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.500" (12.70mm) | Diameter | - |
| Detailed Description | Heat Sink TO-3 Aluminum 2.0W @ 30°C Board Level | Attachment Method | Bolt On |
