501100B00000G

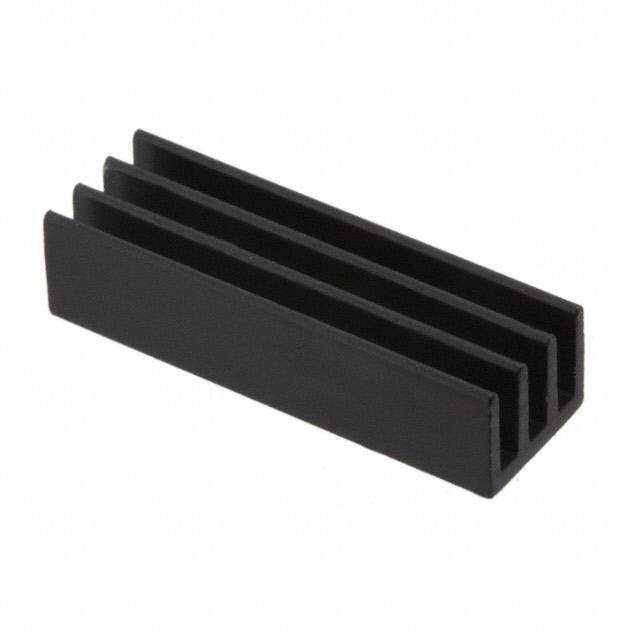

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 501100B00000G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 501100B00000G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 501100B00000G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK 14-DIP/16-DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.354 | $0.338 | $0.321 | $0.313 | $0.309 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.287 | $0.271 | $0.245 | $0.237 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 501100B00000G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK 14-DIP/16-DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 100739 pcs | Data sheet | Standard Heatsinks Catalog |
| Category | Fans, Thermal Management | Width | 0.250" (6.35mm) |
| Type | Top Mount | Thermal Resistance @ Natural | 67.00°C/W |
| Thermal Resistance @ Forced Air Flow | 30.00°C/W @ 500 LFM | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | 0.4W @ 30°C |
| Package Cooled | 14-DIP and 16-DIP | Other Names | 001125 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 0.750" (19.05mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.190" (4.83mm) | Diameter | - |
| Detailed Description | Heat Sink 14-DIP and 16-DIP Aluminum 0.4W @ 30°C Top Mount | Attachment Method | Thermal Tape, Adhesive (Not Included) |
