500103B00000G

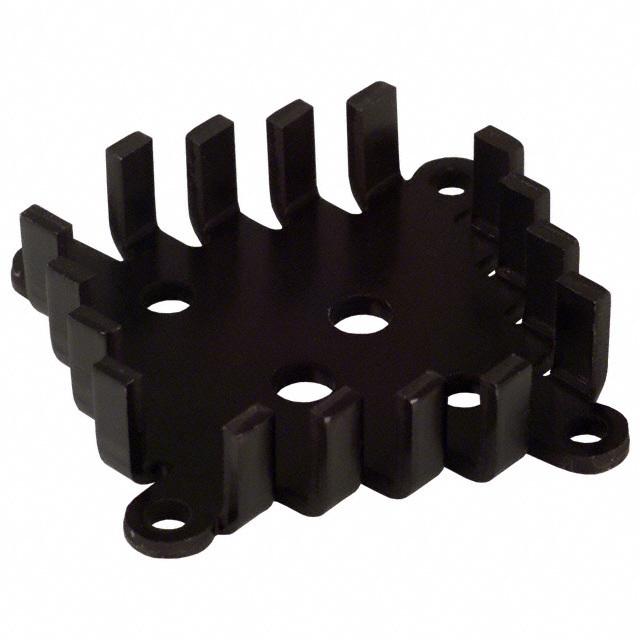

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 500103B00000G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 500103B00000G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 500103B00000G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK TO-3 10W H=.50" BLK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.326 | $1.292 | $1.257 | $1.188 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.118 | $1.048 | $1.013 | $0.908 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 500103B00000G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK TO-3 10W H=.50" BLK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 36523 pcs | Data sheet | 500x03B00000G DatasheetStandard Heatsinks Catalog |
| Category | Fans, Thermal Management | Width | 1.810" (45.97mm) |
| Type | Board Level | Thermal Resistance @ Natural | 7.20°C/W |
| Thermal Resistance @ Forced Air Flow | 2.50°C/W @ 400 LFM | Shape | Square, Pin Fins |
| Series | - | Power Dissipation @ Temperature Rise | 6.0W @ 50°C |
| Package Cooled | TO-3 | Other Names | 001062 500103B00000 6001B-2 HS260 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 7 Weeks |
| Length | 1.810" (45.97mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.500" (12.70mm) | Diameter | - |
| Detailed Description | Heat Sink TO-3 Aluminum 6.0W @ 50°C Board Level | Attachment Method | Bolt On |
