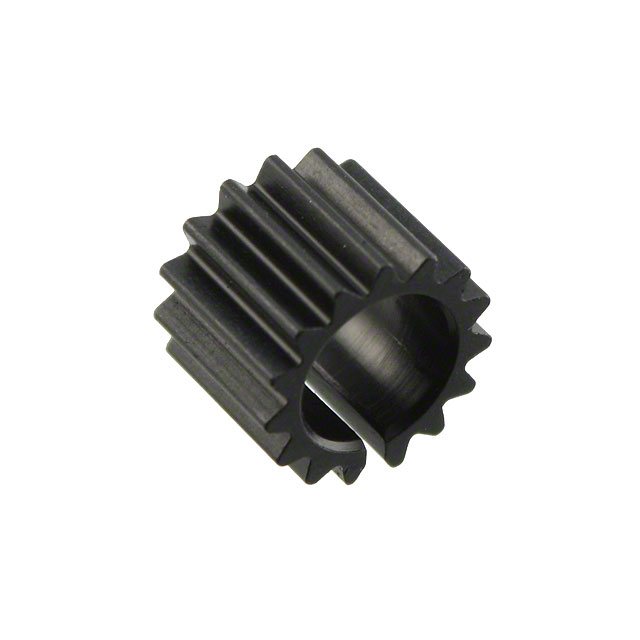

326005B00000G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 326005B00000G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 326005B00000G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 326005B00000G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK TO-5 1W H=.375" BLK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.626 | $0.595 | $0.579 | $0.563 | $0.532 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.501 | $0.469 | $0.438 | $0.422 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 326005B00000G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK TO-5 1W H=.375" BLK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 92856 pcs | Data sheet | 32xx05x00000G DatasheetStandard Heatsinks Catalog |
| Category | Fans, Thermal Management | Width | - |
| Type | Board Level | Thermal Resistance @ Natural | 57.00°C/W |
| Thermal Resistance @ Forced Air Flow | 30.00°C/W @ 200 LFM | Shape | Cylindrical |
| Series | - | Power Dissipation @ Temperature Rise | 1.8W @ 90°C |
| Package Cooled | TO-5 | Other Names | 000547 2260B 326005B00000 326005B00000-ND HS259 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 9 Weeks |
| Length | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.375" (9.52mm) | Diameter | 0.318" (8.07mm) ID, 0.500" (12.70mm) OD |
| Detailed Description | Heat Sink TO-5 Aluminum 1.8W @ 90°C Board Level | Attachment Method | Press Fit |
