Home > Products > Fans, Thermal Management > Thermal - Heat Sinks > 323005B00000G

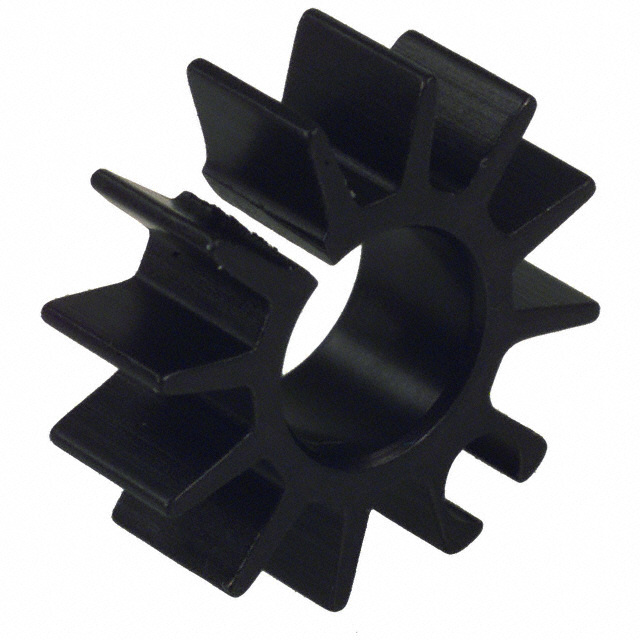

323005B00000G

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 323005B00000G with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	323005B00000G
Manufacturer	Aavid Thermalloy
Description	HEATSINK TO-5 2W BLK
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 56712 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$0.935	$0.912	$0.887	$0.838	$0.789
	$0.739	$0.715	$0.641	$0.629

Product parameter
Data sheet

Product parameter

Part Number	323005B00000G	Manufacturer	Aavid Thermalloy
Description	HEATSINK TO-5 2W BLK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	56712 pcs	Data sheet	323005B00000G Datasheet Standard Heatsinks Catalog
Category	Fans, Thermal Management	Width	-
Type	Board Level	Thermal Resistance @ Natural	56.00°C/W
Thermal Resistance @ Forced Air Flow	35.00°C/W @ 200 LFM	Shape	Cylindrical
Series	-	Power Dissipation @ Temperature Rise	1.4W @ 70°C
Package Cooled	TO-5	Other Names	000540 205-CB 323005B00000 3230B HS101
Moisture Sensitivity Level (MSL)	Not Applicable	Material Finish	Black Anodized
Material	Aluminum	Manufacturer Standard Lead Time	9 Weeks
Length	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Off Base (Height of Fin)	0.250" (6.35mm)	Diameter	0.318" (8.07mm) ID, 0.750" (19.05mm) OD
Detailed Description	Heat Sink TO-5 Aluminum 1.4W @ 70°C Board Level	Attachment Method	Press Fit
