322505B00000G

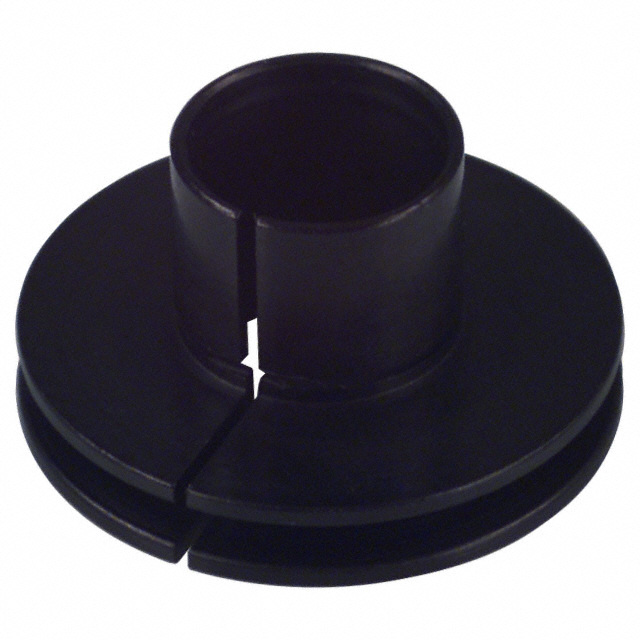

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 322505B00000G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 322505B00000G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 322505B00000G |
|---|---|
| Manufacturer | Aavid Thermalloy |
| Description | HEATSINK TO-5 .4" BLK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.685 | $0.666 | $0.648 | $0.612 | $0.576 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.54 | $0.522 | $0.468 | $0.459 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 322505B00000G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | HEATSINK TO-5 .4" BLK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 81352 pcs | Data sheet | Standard Heatsinks Catalog322x0xB00000G Datasheet |
| Category | Fans, Thermal Management | Width | - |
| Type | Top Mount | Thermal Resistance @ Natural | 56.00°C/W |
| Thermal Resistance @ Forced Air Flow | 15.00°C/W @ 400 LFM | Shape | Cylindrical |
| Series | - | Power Dissipation @ Temperature Rise | 0.5W @ 30°C |
| Package Cooled | TO-5 | Other Names | 000532 2225B 322505B00000 HS242 |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 9 Weeks |
| Length | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.400" (10.16mm) | Diameter | 0.315" (8.00mm) ID, 0.750" (19.05mm) OD |
| Detailed Description | Heat Sink TO-5 Aluminum 0.5W @ 30°C Top Mount | Attachment Method | Press Fit |
