311505B00000G
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 311505B00000G with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 311505B00000G with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 311505B00000G |
|---|---|
| Manufacturer | Aavid Thermalloy |

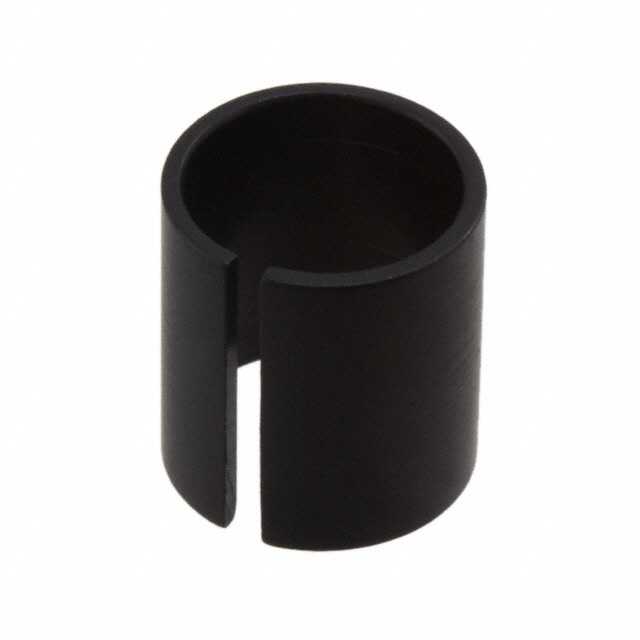

| Description | TO-5 PUSH-ON HEATSINK |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.694 | $0.658 | $0.641 | $0.624 | $0.589 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.554 | $0.52 | $0.485 | $0.468 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 311505B00000G | Manufacturer | Aavid Thermalloy |
|---|---|---|---|
| Description | TO-5 PUSH-ON HEATSINK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 84561 pcs | Data sheet | 320x05B00000G DatasheetStandard Heatsinks Catalog |
| Category | Fans, Thermal Management | Width | - |
| Type | Board Level | Thermal Resistance @ Natural | 90.00°C/W |
| Thermal Resistance @ Forced Air Flow | 45.00°C/W @ 200 LFM | Shape | Cylindrical |
| Series | - | Power Dissipation @ Temperature Rise | 1.0W @ 70°C |
| Package Cooled | TO-5 | Other Names | 000508 311505B00000G-ND HS521 |
| Material Finish | Black Anodized | Material | Aluminum |
| Manufacturer Standard Lead Time | 9 Weeks | Length | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Off Base (Height of Fin) | 0.400" (10.16mm) |
| Diameter | 0.317" (8.05mm) ID, 0.375" (9.52mm) OD | Detailed Description | Heat Sink TO-5 Aluminum 1.0W @ 70°C Board Level |
| Attachment Method | Press Fit |
