Home > Products > Circuit Protection > TVS - Diodes > SMAJ26CA

SMAJ26CA

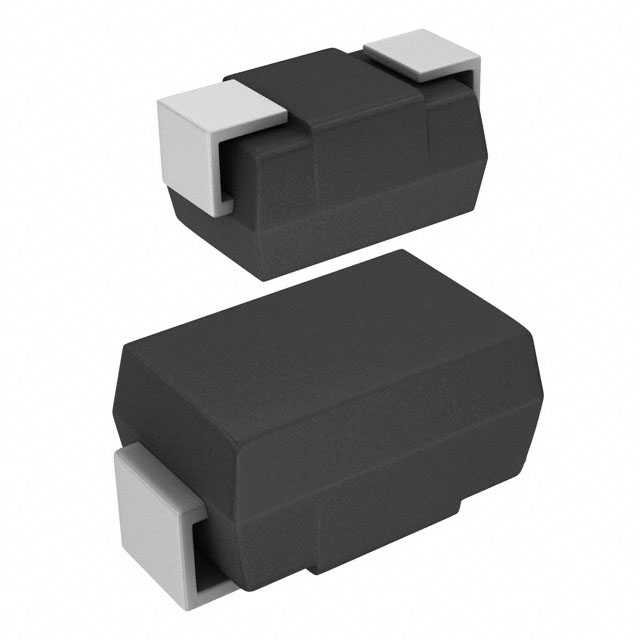

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SMAJ26CA with confidence from Components-World.HK, 1 Year Warranty

Dowload SMAJ26CA Details in PDF

Request a Quote

Part Number	SMAJ26CA
Manufacturer	AVX Corporation
Description	TVS DIODE 26V 42.1V SMA
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 590258 pcs
Reference Price (In US Dollars)	7500 pcs	15000 pcs	37500 pcs
Reference Price (In US Dollars)	$0.043	$0.04	$0.037

Product parameter
Data sheet

Product parameter

Part Number	SMAJ26CA	Manufacturer	AVX Corporation
Description	TVS DIODE 26V 42.1V SMA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	590258 pcs	Data sheet	Transient Suppression Diodes
Category	Circuit Protection	Voltage - Reverse Standoff (Typ)	26V
Voltage - Clamping (Max) @ Ipp	42.1V	Voltage - Breakdown (Min)	28.9V
Type	Zener	Supplier Device Package	SMAJ (DO-214AC)
Series	-	Power Line Protection	No
Power - Peak Pulse	400W	Packaging	Tape & Reel (TR)
Package / Case	DO-214AC, SMA	Other Names	478-7056-2 PFD10019
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Current - Peak Pulse (10/1000µs)	9.5A
Capacitance @ Frequency	-	Bidirectional Channels	1
Applications	General Purpose
