SD0805S020S1R0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SD0805S020S1R0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SD0805S020S1R0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SD0805S020S1R0 |
|---|---|
| Manufacturer | AVX Corporation |
| Description | DIODE SCHOTTKY 20V 1A 0805 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.152 | $0.12 | $0.082 | $0.056 | $0.042 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SD0805S020S1R0 | Manufacturer | AVX Corporation |
|---|---|---|---|
| Description | DIODE SCHOTTKY 20V 1A 0805 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 508554 pcs | Data sheet | Schottky Barrier Rectifier Diode |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 450mV @ 1A |
| Voltage - DC Reverse (Vr) (Max) | 20V | Supplier Device Package | 0805 (2012 Metric) |
| Speed | Fast Recovery = 200mA (Io) | Series | - |
| Packaging | Cut Tape (CT) | Package / Case | 0805 (2012 Metric) |
| Other Names | 478-7800-1 | Operating Temperature - Junction | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Schottky | Detailed Description | Diode Schottky 20V 1A (DC) Surface Mount 0805 (2012 Metric) |
| Current - Reverse Leakage @ Vr | 200µA @ 20V | Current - Average Rectified (Io) | 1A (DC) |
| Capacitance @ Vr, F | - | Base Part Number | SD0805S02 |
- Related products
- Related news
Related products
- Part#:
SD0805S020S0R5 - Manufacturers:
AVX Corporation - Description:
DIODE SCHOTTKY 20V 500MA 0805 - In Stock:
778422
- Part#:
SD0805S040S0R1 - Manufacturers:
AVX Corporation - Description:
DIODE SCHOTTKY 40V 100MA 0805 - In Stock:
482661
- Part#:
SD085-23-21-021 - Manufacturers:
Advanced Photonix (Luna Optoelectronics) - Description:
PHOTODIODE QUAD CELL TO-5 - In Stock:
1130
- Part#:

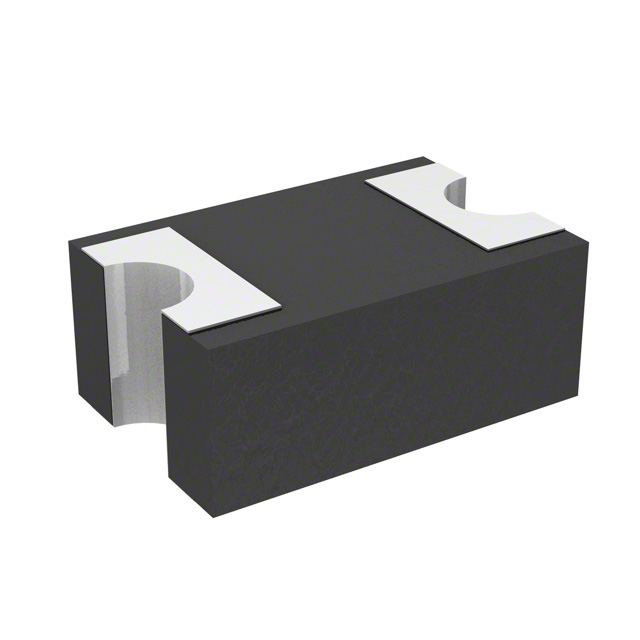

SD0805S040S0R5 - Manufacturers:
