SD0603S040S0R2

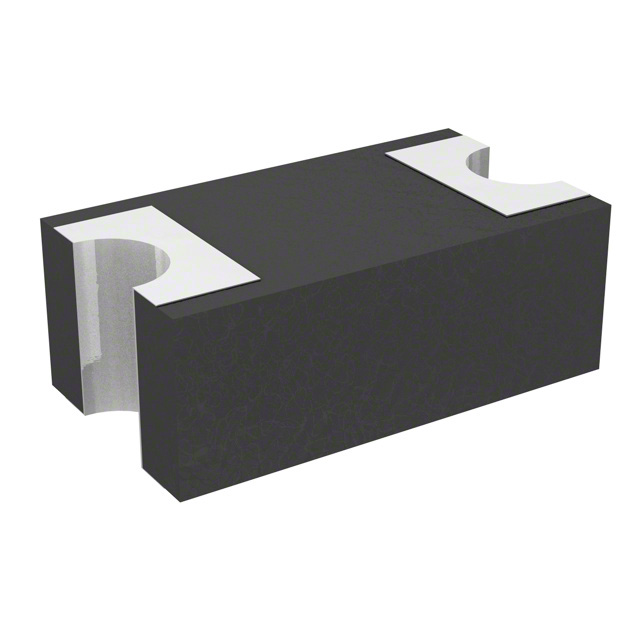

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SD0603S040S0R2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SD0603S040S0R2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SD0603S040S0R2 |
|---|---|
| Manufacturer | AVX Corporation |
| Description | DIODE SCHOTTKY 40V 200MA 0603 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 3000 pcs | 6000 pcs | 15000 pcs | 30000 pcs | 75000 pcs |
|---|---|---|---|---|---|
| $0.03 | $0.028 | $0.026 | $0.024 | $0.022 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | SD0603S040S0R2 | Manufacturer | AVX Corporation |
|---|---|---|---|
| Description | DIODE SCHOTTKY 40V 200MA 0603 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1114087 pcs | Data sheet | Schottky Barrier Rectifier Diode |
| Category | Discrete Semiconductor Products | Voltage - Forward (Vf) (Max) @ If | 450mV @ 200mA |
| Voltage - DC Reverse (Vr) (Max) | 40V | Supplier Device Package | 0603 (1608 Metric) |
| Speed | Small Signal =< 200mA (Io), Any Speed | Series | - |
| Packaging | Tape & Reel (TR) | Package / Case | 0603 (1608 Metric) |
| Other Names | 478-7798-2 | Operating Temperature - Junction | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Diode Type | Schottky | Detailed Description | Diode Schottky 40V 200mA (DC) Surface Mount 0603 (1608 Metric) |
| Current - Reverse Leakage @ Vr | 1µA @ 40V | Current - Average Rectified (Io) | 200mA (DC) |
| Capacitance @ Vr, F | - | Base Part Number | SD0603S04 |
