Home > Products > Capacitors > Ceramic Capacitors > M49470X01685KBN

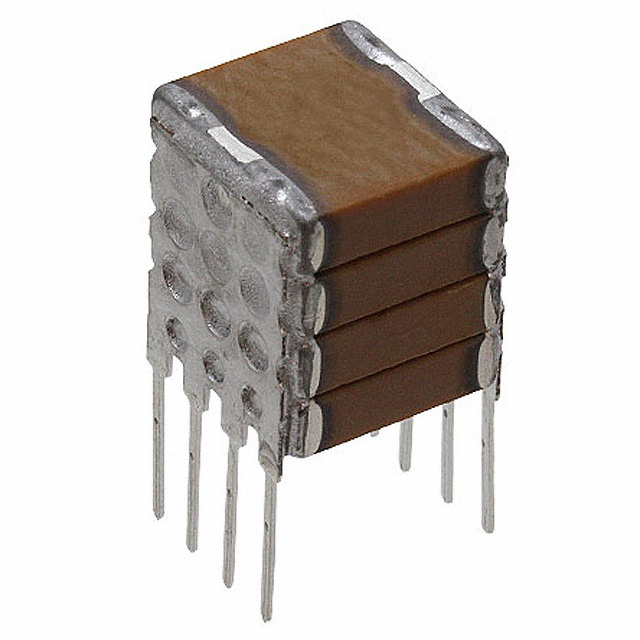

M49470X01685KBN

M49470X01685KBN

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy M49470X01685KBN with confidence from Components-World.HK, 1 Year Warranty

Dowload M49470X01685KBN Details in PDF

Request a Quote

Part Number	M49470X01685KBN
Manufacturer	AVX Corporation
Description	CAP CER 6.8UF 100V X7R DIP
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 3297 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs
Reference Price (In US Dollars)	$12.194	$11.553

Product parameter
Data sheet

Product parameter

Part Number	M49470X01685KBN	Manufacturer	AVX Corporation
Description	CAP CER 6.8UF 100V X7R DIP	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	3297 pcs	Data sheet	SMPS Capacitors (SM Style)
Category	Capacitors	Voltage - Rated	100V
Tolerance	±10%	Thickness (Max)	-
Temperature Coefficient	X7R	Size / Dimension	0.388" L x 0.441" W (9.85mm x 11.20mm)
Series	-	Ratings	-
Packaging	Bulk	Package / Case	Stacked DIP, 8 Lead
Other Names	1010-1252 1010-1252-MIL SM041X685KHN480	Operating Temperature	-55°C ~ 125°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Style	-	Lead Spacing	0.250" (6.35mm)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Height - Seated (Max)	0.545" (13.84mm)
Features	-	Failure Rate	-
Detailed Description	6.8µF ±10% 100V Ceramic Capacitor X7R Stacked DIP, 8 Lead	Capacitance	6.8µF
Applications	General Purpose
