CX2520SB40000H0WZK06

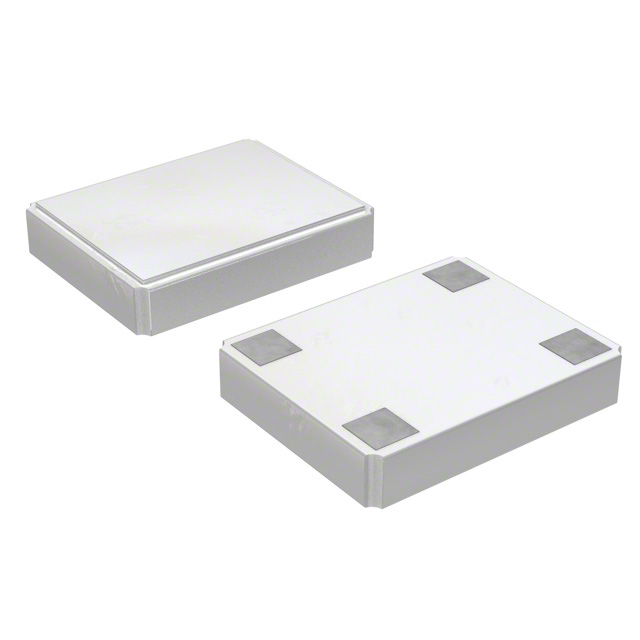

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CX2520SB40000H0WZK06 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CX2520SB40000H0WZK06 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CX2520SB40000H0WZK06 |
|---|---|
| Manufacturer | AVX Corporation |
| Description | CRYSTAL 40.0000MHZ 12PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 3000 pcs | 5000 pcs | ||
|---|---|---|---|---|---|
| $0.522 | $0.486 | $0.468 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | CX2520SB40000H0WZK06 | Manufacturer | AVX Corporation |
|---|---|---|---|
| Description | CRYSTAL 40.0000MHZ 12PF SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70988 pcs | Data sheet | CX2520SB40000H0WZK06CX2520SB Series |
| Category | Crystals, Oscillators, Resonators | Type | MHz Crystal |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | Series | CX2520SB, Kyocera |
| Ratings | - | Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, No Lead | Other Names | 478-4819-2 CX2016SB40000H0WZK06 |
| Operating Temperature | 0°C ~ 85°C | Operating Mode | Fundamental |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 16 Weeks | Load Capacitance | 12pF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.022" (0.55mm) |
| Frequency Tolerance | - | Frequency Stability | ±18ppm |
| Frequency | 40MHz | ESR (Equivalent Series Resistance) | 50 Ohms |
| Detailed Description | 40MHz Crystal 12pF 50 Ohms 4-SMD, No Lead |
