Home > Products > Capacitors > Ceramic Capacitors > 2220GC103KAZ1A

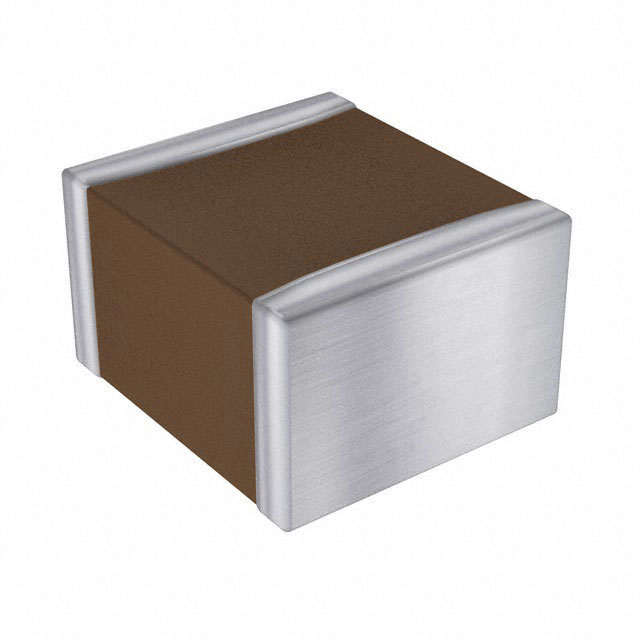

2220GC103KAZ1A

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2220GC103KAZ1A with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	2220GC103KAZ1A
Manufacturer	AVX Corporation
Description	CAP CER 10000PF 2KV X7R 2220
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 87424 pcs
Reference Price (In US Dollars)	500 pcs	1000 pcs	2500 pcs	5000 pcs
Reference Price (In US Dollars)	$0.447	$0.391	$0.377	$0.363

Product parameter
Data sheet

Product parameter

Part Number	2220GC103KAZ1A	Manufacturer	AVX Corporation
Description	CAP CER 10000PF 2KV X7R 2220	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	87424 pcs	Data sheet	FLEXITERM® High Volt MLC Chips Ceramic Cap Catalog
Category	Capacitors	Voltage - Rated	2000V (2kV)
Tolerance	10000pF	Thickness (Max)	X7R
Surface Mount Land Size	-	Size / Dimension	0.224" L x 0.197" W (5.70mm x 5.00mm)
Series	FLEXITERM®	RoHS Status	Tape & Reel (TR)
Ripple Current - Low Frequency	Boardflex Sensitive, SMPS Filtering	Ratings	-
Polarization	2220 (5750 Metric)	Other Names	2220GC103KAZ1A-ND 2220GC103KAZ1A/1K 2220GC103KAZ1A/500 478-4611-2
Operating Temperature	-55°C ~ 125°C	Mounting Type	Surface Mount, MLCC
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Manufacturer Part Number	2220GC103KAZ1A	Lead Style	0.130" (3.30mm)
Height - Seated (Max)	-	Features	Soft Termination, High Voltage
Failure Rate	-	Expanded Description	10000pF ±10% 2000V (2kV) Ceramic Capacitor X7R 2220 (5750 Metric)
ESR (Equivalent Series Resistance)	±10%	Description	CAP CER 10000PF 2KV X7R 2220
