086222020101800+

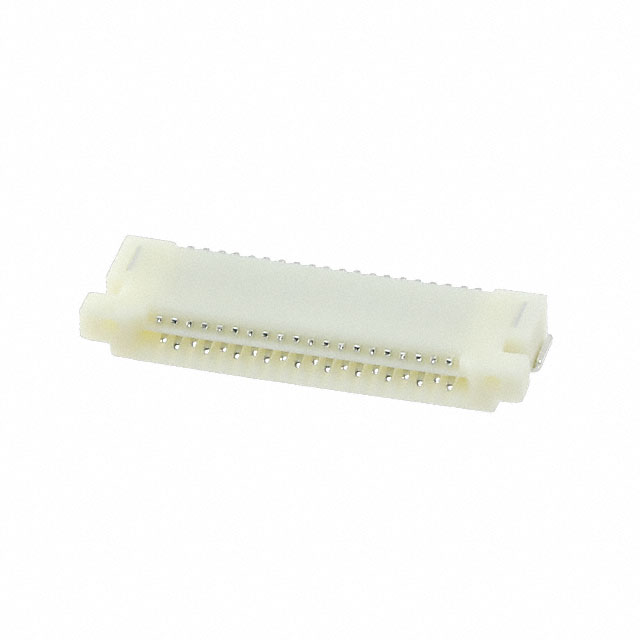

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 086222020101800+ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 086222020101800+ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 086222020101800+ |
|---|---|
| Manufacturer | AVX Corporation |
| Description | CONN FPC 20POS 0.50MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | 10000 pcs | 14000 pcs |
|---|---|---|---|---|---|
| $0.201 | $0.195 | $0.188 | $0.179 | $0.175 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 086222020101800+ | Manufacturer | AVX Corporation |
|---|---|---|---|
| Description | CONN FPC 20POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 112078 pcs | Data sheet | 6222 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | 6222, Kyocera |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | 1253-1779-2 | Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 20 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 16 Weeks |
| Locking Feature | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Plastic | Housing Color | - |
| Height Above Board | 0.077" (1.95mm) | Flat Flex Type | FFC, FPC |
| Features | Low Insertion Force (LIF), Mating Flange, Solder Retention | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 20 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.4A |
| Contact Material | Copper Alloy | Contact Finish Thickness | - |
| Contact Finish | Tin Copper | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tapered | Actuator Material | - |
| Actuator Color | - |
