046808607000846+

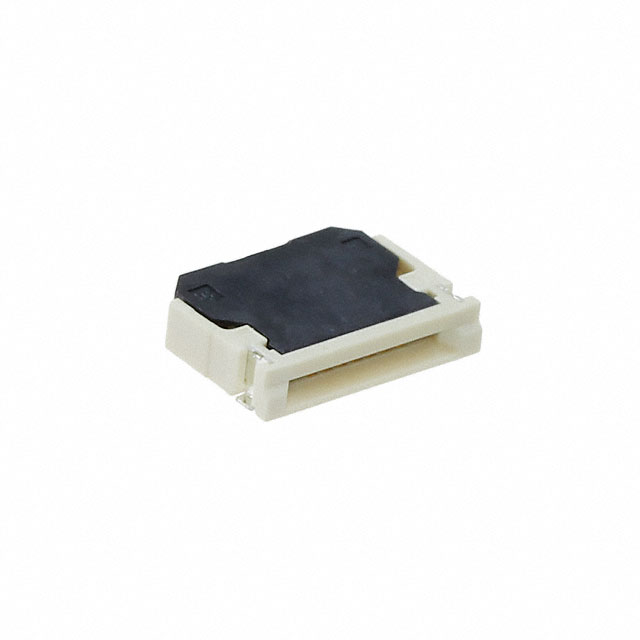

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 046808607000846+ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 046808607000846+ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 046808607000846+ |
|---|---|
| Manufacturer | AVX Corporation |
| Description | BATTERY FPC CONNECTOR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | 10000 pcs | 15000 pcs | 25000 pcs | |
|---|---|---|---|---|---|
| $0.118 | $0.11 | $0.109 | $0.106 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 046808607000846+ | Manufacturer | AVX Corporation |
|---|---|---|---|
| Description | BATTERY FPC CONNECTOR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 198549 pcs | Data sheet | Connectors Guide6808 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | 6808, Kyocera |
| Pitch | 0.020" (0.50mm) | Packaging | Tape & Reel (TR) |
| Other Names | 1253-1609-2 | Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 7 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 16 Weeks |
| Locking Feature | Flip Lock, Backlock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Plastic | Housing Color | - |
| Height Above Board | 0.059" (1.50mm) | Flat Flex Type | FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 7 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | - |
| Contact Material | Copper Alloy | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | Notched | Actuator Material | Plastic |
| Actuator Color | - |
