009296003202906

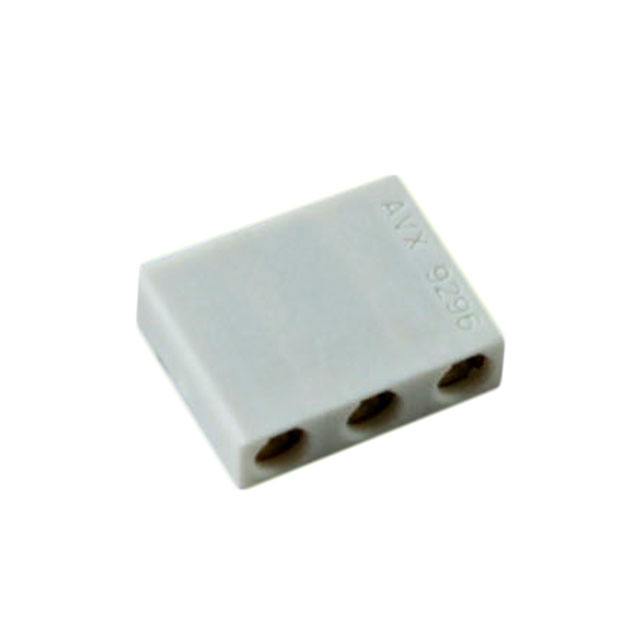

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 009296003202906 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 009296003202906 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 009296003202906 |
|---|---|
| Manufacturer | AVX Corporation |
| Description | CONN 3POS SMD 20-26AWG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | 10000 pcs | 14000 pcs |
|---|---|---|---|---|---|
| $0.10 | $0.094 | $0.09 | $0.084 | $0.083 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 009296003202906 | Manufacturer | AVX Corporation |
|---|---|---|---|
| Description | CONN 3POS SMD 20-26AWG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 283045 pcs | Data sheet | 9296 Series, Horizontal |
| Category | Connectors, Interconnects | Wire Gauge | 20-26 AWG |
| Series | 9296 | Row Spacing | - |
| Packaging | Tape & Reel (TR) | Other Names | 478-9534-2 |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Closed End |
| Detailed Description | 3 Position Individual Wires Connector White Poke-In 20-26 AWG Surface Mount, Right Angle | Contact Finish Thickness | - |
| Contact Finish | Tin | Connector Type | Individual Wires |
| Color | White | Cable Termination | Poke-In |
| Cable Pitch | 0.118" (3.00mm) | Board-Side Pitch | 0.118" (3.00mm) |
