009158020030001

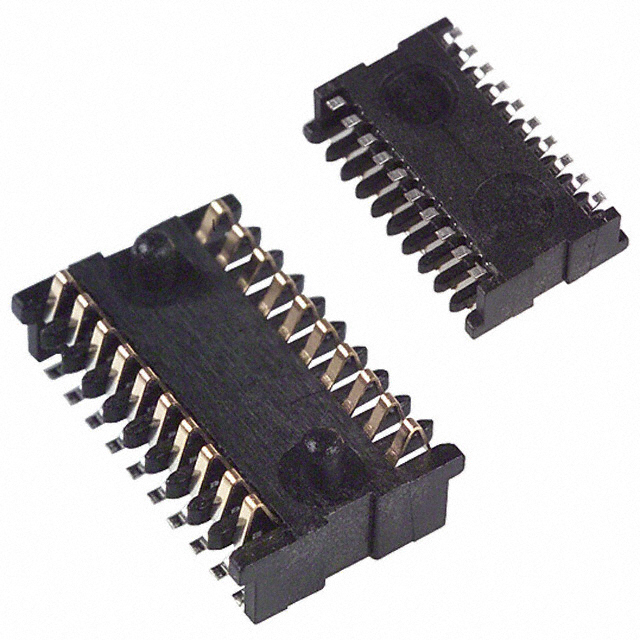

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 009158020030001 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 009158020030001 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 009158020030001 |
|---|---|
| Manufacturer | AVX Corporation |
| Description | CONN STACKING 2.8MM-3.3MM 20POS |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 009158020030001 | Manufacturer | AVX Corporation |
|---|---|---|---|
| Description | CONN STACKING 2.8MM-3.3MM 20POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4171 pcs | Data sheet | 9158 Series |
| Category | Connectors, Interconnects | Series | MOBO® 9158 |
| Pitch | 0.039" (1.00mm) | Packaging | Cut Tape (CT) |
| Other Names | 478-2003-1 | Number of Rows | 2 |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | Mated Stacking Heights | 2.8mm ~ 3.3mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.106" (2.70mm) |
| Features | Board Guide | Detailed Description | 20 Position Connector Stacking Compression Surface Mount Gold |
| Contact Finish Thickness | 10.0µin (0.25µm) | Contact Finish | Gold |
| Connector Type | Stacking Compression |
