006200509130000+

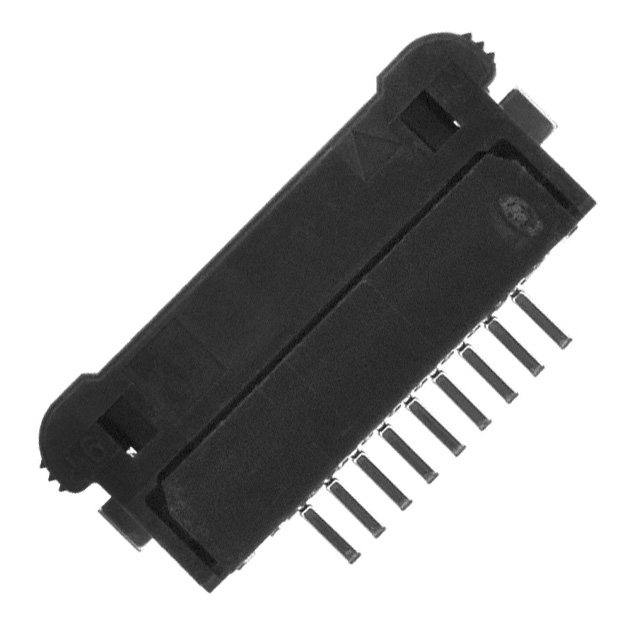

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 006200509130000+ with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 006200509130000+ with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 006200509130000+ |
|---|---|
| Manufacturer | AVX Corporation |
| Description | CONN FFC BOTTOM 9POS 1.00MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.434 | $0.383 | $0.36 | $0.345 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $0.33 | $0.30 | $0.27 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 006200509130000+ | Manufacturer | AVX Corporation |
|---|---|---|---|
| Description | CONN FFC BOTTOM 9POS 1.00MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 70814 pcs | Data sheet | 6200 Series Datasheet |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | 6200, Kyocera |
| Pitch | 0.039" (1.00mm) | Packaging | Original-Reel® |
| Other Names | 478-5536-6 | Operating Temperature | -20°C ~ 85°C |
| Number of Positions | 9 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 16 Weeks |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Plastic | Housing Color | - |
| Height Above Board | 0.114" (2.90mm) | Flat Flex Type | FFC, FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 9 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle | Current Rating | 1A |
| Contact Material | Copper Alloy | Contact Finish Thickness | 3.90µin (0.099µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Straight | Actuator Material | - |
| Actuator Color | - |
