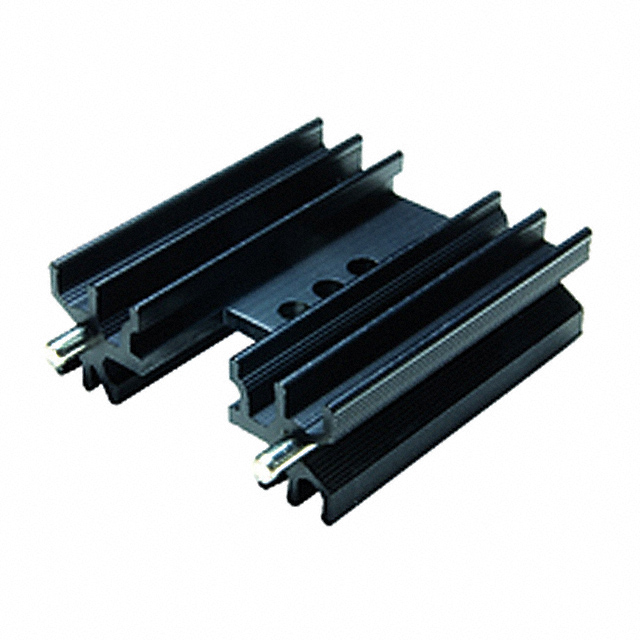

V8813W
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy V8813W with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy V8813W with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | V8813W |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | HEATSINK TO-220/TOP-3/SOT-32 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.236 | $0.225 | $0.213 | $0.208 | $0.205 | |
| 300 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.191 | $0.18 | $0.163 | $0.157 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | V8813W | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | HEATSINK TO-220/TOP-3/SOT-32 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 133503 pcs | Data sheet | V8813x Drawing |
| Category | Fans, Thermal Management | Width | 1.359" (34.50mm) |
| Type | Board Level, Vertical | Thermal Resistance @ Natural | 6.50°C/W |
| Thermal Resistance @ Forced Air Flow | - | Shape | Rectangular, Fins |
| Series | - | Power Dissipation @ Temperature Rise | - |
| Package Cooled | SOT-32, TO-220, TOP-3 | Other Names | AE10771 |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Finish | Black Anodized |
| Material | Aluminum | Manufacturer Standard Lead Time | 20 Weeks |
| Length | 0.984" (25.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin) | 0.492" (12.50mm) | Diameter | - |
| Detailed Description | Heat Sink SOT-32, TO-220, TOP-3 Aluminum Board Level, Vertical | Attachment Method | Bolt On and PC Pin |
