Home > Products > Fans, Thermal Management > Thermal - Heat Sinks > V5583C

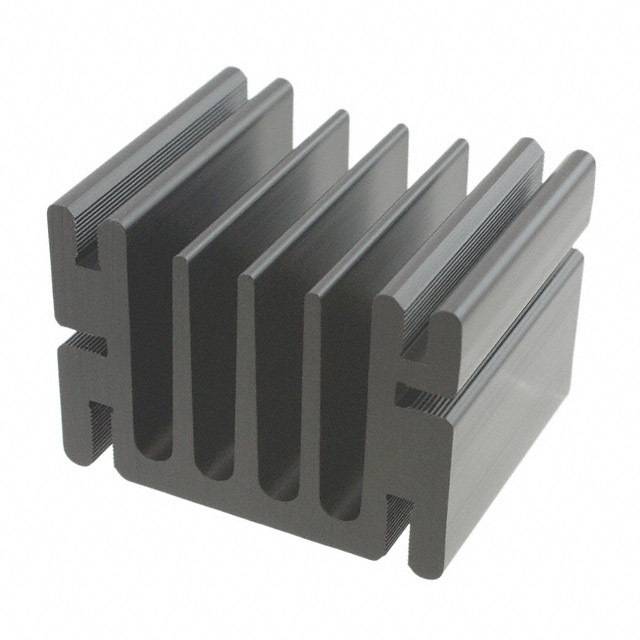

V5583C

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy V5583C with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	V5583C
Manufacturer	ASSMANN WSW Components
Description	HEATSINK ALUM ANOD
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	5000 pcs
~~In Stock~~ 47102 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$1.031	$1.005	$0.978	$0.924	$0.869
	$0.815	$0.788	$0.706	$0.693

Product parameter
Data sheet

Product parameter

Part Number	V5583C	Manufacturer	ASSMANN WSW Components
Description	HEATSINK ALUM ANOD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	47102 pcs	Data sheet	V5583C Drawing
Category	Fans, Thermal Management	Width	1.811" (46.00mm)
Type	Top Mount	Thermal Resistance @ Natural	5.20°C/W
Thermal Resistance @ Forced Air Flow	-	Shape	Rectangular, Fins
Series	-	Power Dissipation @ Temperature Rise	-
Package Cooled	TO-220	Other Names	AE10814
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Finish	Black Anodized
Material	Aluminum	Manufacturer Standard Lead Time	20 Weeks
Length	1.476" (37.50mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height Off Base (Height of Fin)	1.299" (33.00mm)	Diameter	-
Detailed Description	Heat Sink TO-220 Aluminum Top Mount	Attachment Method	Bolt On
