Home > Products > Cable Assemblies > D-Sub Cables > H7SXH-0906M

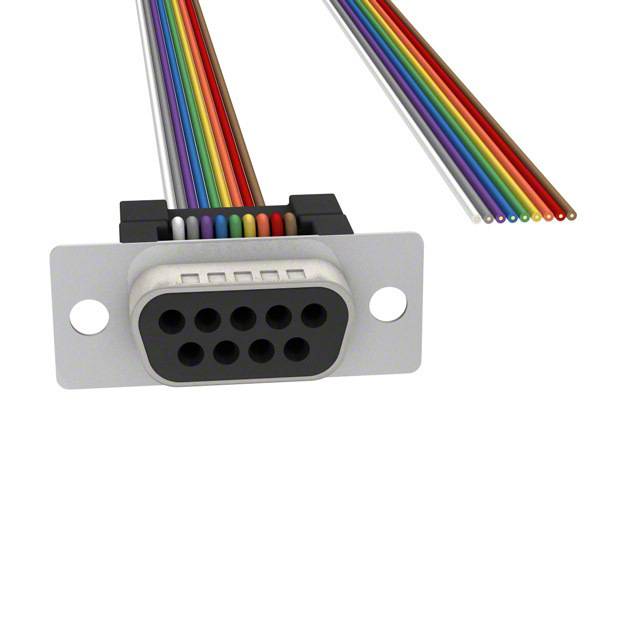

H7SXH-0906M

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy H7SXH-0906M with confidence from Components-World.HK, 1 Year Warranty

Dowload H7SXH-0906M Details in PDF

Request a Quote

Part Number	H7SXH-0906M
Manufacturer	ASSMANN WSW Components
Description	CABLE D-SUB - HFM09H/AE09M/X
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

	250 pcs	500 pcs	1000 pcs	2500 pcs
~~In Stock~~ 45410 pcs
Reference Price (In US Dollars)	1 pcs	10 pcs	25 pcs	50 pcs	100 pcs
	$1.601	$1.536	$1.408	$1.344	$1.28
	$1.12	$1.088	$0.928	$0.864

Product parameter
Data sheet

Product parameter

Part Number	H7SXH-0906M	Manufacturer	ASSMANN WSW Components
Description	CABLE D-SUB - HFM09H/AE09M/X	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	45410 pcs	Data sheet	AWG28-xx/F/300 Ribbon Cable Assembly Length Guide A-DxFxxLPIII-Z Drawing
Category	Cable Assemblies	Usage	-
Type	DB09	Shielding	Unshielded
Series	-	Number of Positions	9
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Length	6.00' (1.83m)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	D-Sub Cable Assembly DB09 Multiple, Ribbon 6.00' (1.83m) Receptacle, Female Sockets to Individual Wire Leads Unshielded
Contact Finish Thickness	10.0µin (0.25µm)	Contact Finish	Gold
Color	Multiple, Ribbon	2nd Connector	Individual Wire Leads
1st Connector	Receptacle, Female Sockets
