AWHW2 40A-0202
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AWHW2 40A-0202 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AWHW2 40A-0202 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AWHW2 40A-0202 |
|---|---|
| Manufacturer | ASSMANN WSW Components |

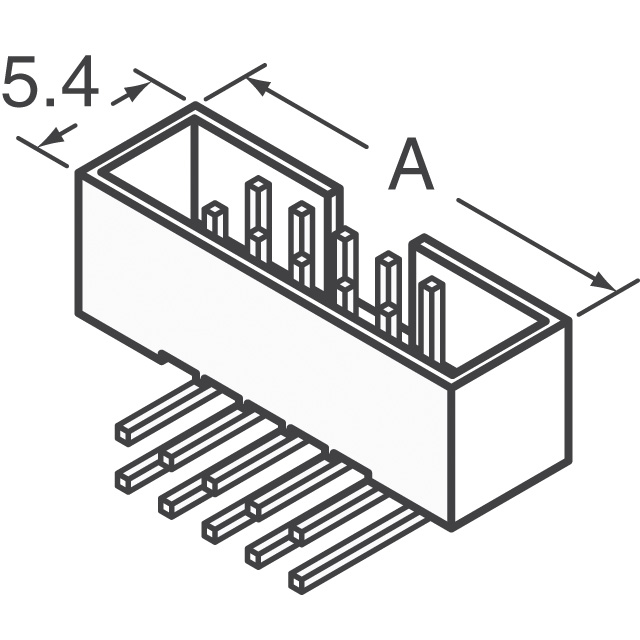

| Description | CONN HEADER LO-PRO 2MM 40POS R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 126 pcs | ||||
|---|---|---|---|---|---|
| $0.539 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AWHW2 40A-0202 | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN HEADER LO-PRO 2MM 40POS R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69710 pcs | Data sheet | AWHW2-xxA-0202 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | - |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | AWHW2 40A-0202-ND AWHW2-40A-0202 AWHW2-40A-0202-ND AWHW240A-0202 |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA9T), Nylon 9T, Glass Filled |
| Insulation Height | 0.217" (5.51mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole, Right Angle 40 position 0.079" (2.00mm) |
| Current Rating | 1.5A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.110" (2.79mm) | Contact Length - Mating | 0.157" (4.00mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
