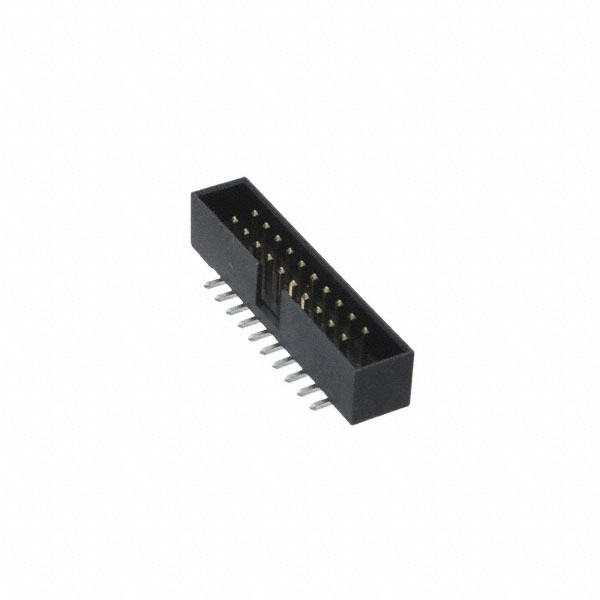

AWHW2-20G-SMD-R
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AWHW2-20G-SMD-R with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AWHW2-20G-SMD-R with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AWHW2-20G-SMD-R |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN HEADER LO-PRO 2MM 20POS SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AWHW2-20G-SMD-R | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN HEADER LO-PRO 2MM 20POS SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5455 pcs | Data sheet | AWHW-xxG-SMD-200(R) Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | - |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | AE10571 AWHW2-20-G-SMD-R AWHW220GSMDR |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA9T), Nylon 9T, Glass Filled | Insulation Height | 0.220" (5.60mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot, Pick and Place | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Surface Mount 20 position 0.079" (2.00mm) | Current Rating | 1.5A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | - |
| Contact Length - Mating | 0.157" (4.00mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | - |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
