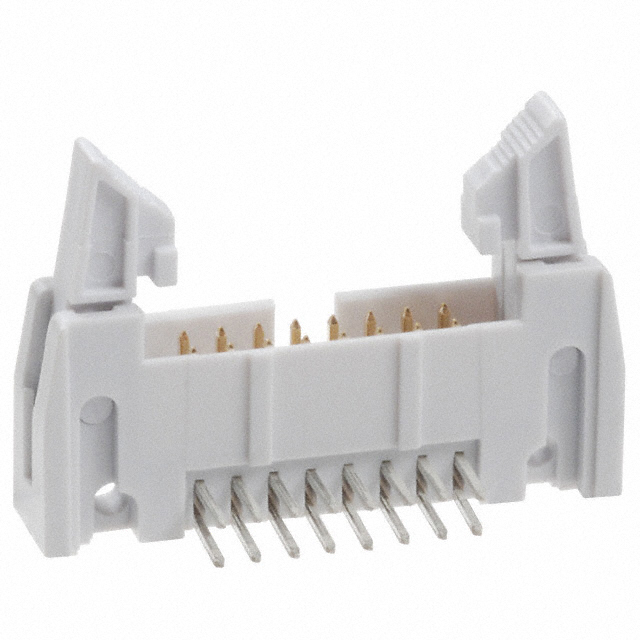

AWH 16A-0222-T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AWH 16A-0222-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AWH 16A-0222-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AWH 16A-0222-T |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN HEADER 16POS R/A SHORT GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 120 pcs | 600 pcs | |
|---|---|---|---|---|---|
| $0.598 | $0.543 | $0.466 | $0.388 | ||
| 1080 pcs | 5040 pcs | 10080 pcs | |||
| $0.333 | $0.295 | $0.288 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | AWH 16A-0222-T | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN HEADER 16POS R/A SHORT GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80548 pcs | Data sheet | AWHxxA-0xx2-T Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | - |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | AE11077 AWH-16A-0222-T AWH16A-0222-T AWH16A-0222-T-ND |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.327" (8.30mm) | Insulation Color | Gray |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Latch Lock/Eject Hooks, Short | Detailed Description | Connector Header Through Hole, Right Angle 16 position 0.100" (2.54mm) |
| Current Rating | 3A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.150" (3.81mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
