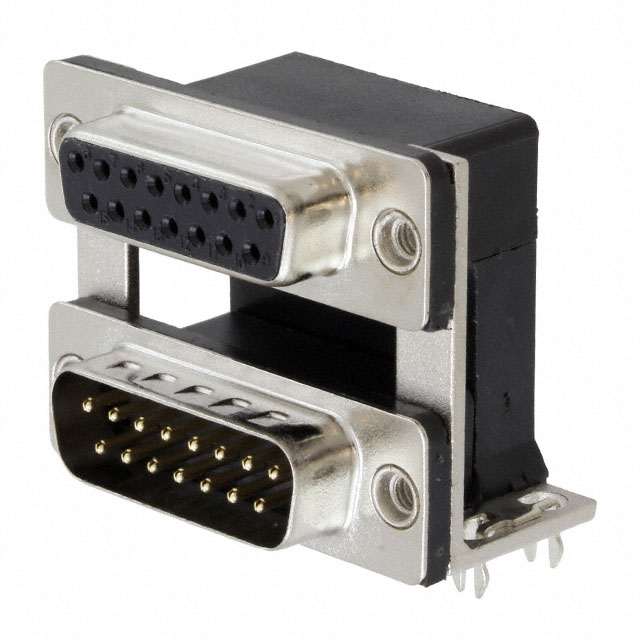

ASUB-277-15TP25
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy ASUB-277-15TP25 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy ASUB-277-15TP25 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | ASUB-277-15TP25 |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN D-SUB PLUG/RCPT 15POS R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 60 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.131 | $2.045 | $1.874 | $1.789 | $1.704 | |
| 260 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $1.491 | $1.448 | $1.235 | $1.15 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | ASUB-277-15TP25 | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN D-SUB PLUG/RCPT 15POS R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32525 pcs | Data sheet | ASUB-277-xxTPxx Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 250V | Termination | Solder |
| Shell Size, Connector Layout | 2 (DA, A); 2 (DA, A) | Shell Material, Finish | Steel, Tin Plated |
| Series | - | Packaging | Tray |
| Other Names | ADF-S15A-GTAXB7-R ADF-S15A-GTAXB7-R-ND AE10965 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2, 2 | Number of Positions | 15, 15 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Flange Feature | Housing/Shell (4-40) |
| Features | Board Lock, Grounding Indents | Detailed Description | 15, 15 Position D-Sub - Stacked Plug, Male Pins; Receptacle, Female Sockets Connector |
| Current Rating | 3A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Plug, Male Pins; Receptacle, Female Sockets | Connector Style | D-Sub - Stacked |
| Color | Black | Backset Spacing | - |
