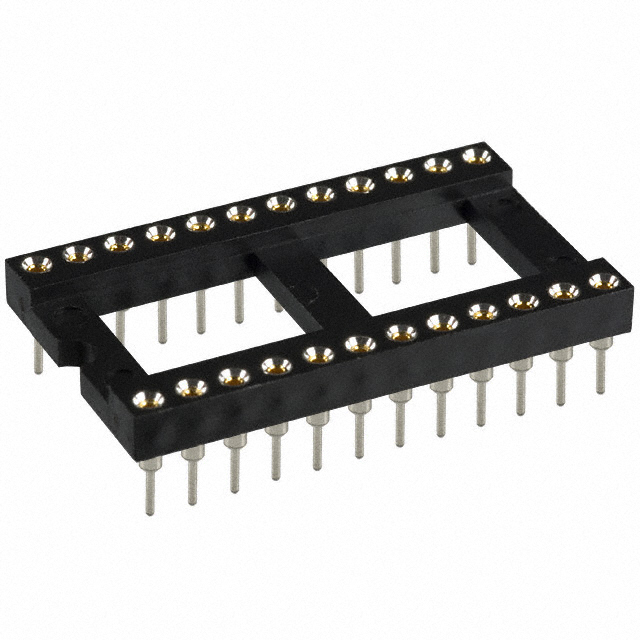

AR24-HZL/01-TT
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AR24-HZL/01-TT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AR24-HZL/01-TT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AR24-HZL/01-TT |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN IC DIP SOCKET 24POS GOLD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | AR24-HZL/01-TT | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 24POS GOLD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 5313 pcs | Data sheet | ARxx-HxL-TT,xx-R |
| Category | Connectors, Interconnects | Type | DIP, 0.6" (15.24mm) Row Spacing |
| Termination Post Length | - | Termination | Solder |
| Series | - | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | AE7305 AR24-HZL/01-T |
Operating Temperature | -40°C ~ 105°C |
| Number of Positions or Pins (Grid) | 24 (2 x 12) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Housing Material | Thermoplastic, Polyester |
| Features | Open Frame | Current Rating | 3A |
| Contact Resistance | 4 mOhm | Contact Material - Post | Beryllium Copper |
| Contact Material - Mating | Beryllium Copper | Contact Finish Thickness - Post | 200.0µin (5.08µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold |
