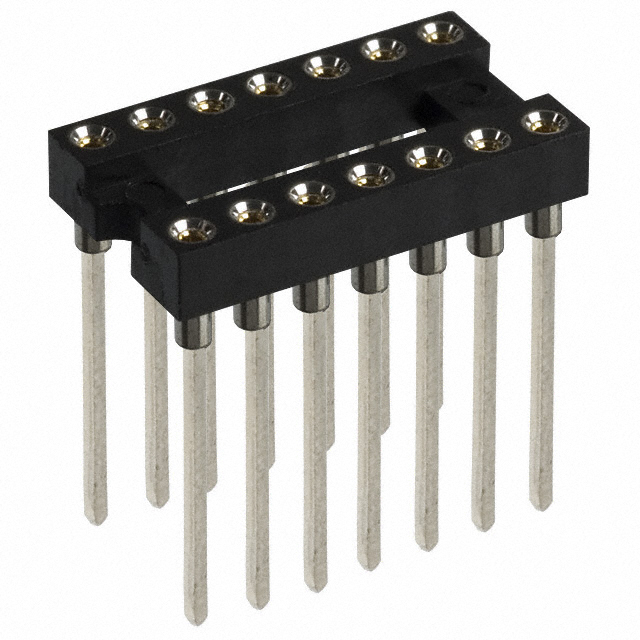

AR 14 HZW/TN
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AR 14 HZW/TN with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AR 14 HZW/TN with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AR 14 HZW/TN |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN IC DIP SOCKET 14POS GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 33 pcs | 66 pcs | 132 pcs |
|---|---|---|---|---|---|
| $0.927 | $0.84 | $0.789 | $0.754 | $0.72 | |
| 264 pcs | 528 pcs | 1023 pcs | 2508 pcs | ||
| $0.652 | $0.60 | $0.514 | $0.48 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AR 14 HZW/TN | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 14POS GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 79936 pcs | Data sheet | AR xxHZW/TN |
| Category | Connectors, Interconnects | Type | DIP, 0.3" (7.62mm) Row Spacing |
| Termination Post Length | - | Termination | Wire Wrap |
| Series | - | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | AE10047 AE10047INACTIVE-ND AE7114 AE7114-ND AR 14-HZW/TN AR-14-HZW/TN AR14-HZW AR14-HZW/T AR14-HZW/T-R AR14HZWTR |
Operating Temperature | -40°C ~ 105°C |
| Number of Positions or Pins (Grid) | 14 (2 x 7) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 20 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Thermoplastic, Polyester | Features | Open Frame |
| Current Rating | 3A | Contact Resistance | 4 mOhm |
| Contact Material - Post | Beryllium Copper | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 200.0µin (5.08µm) | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
