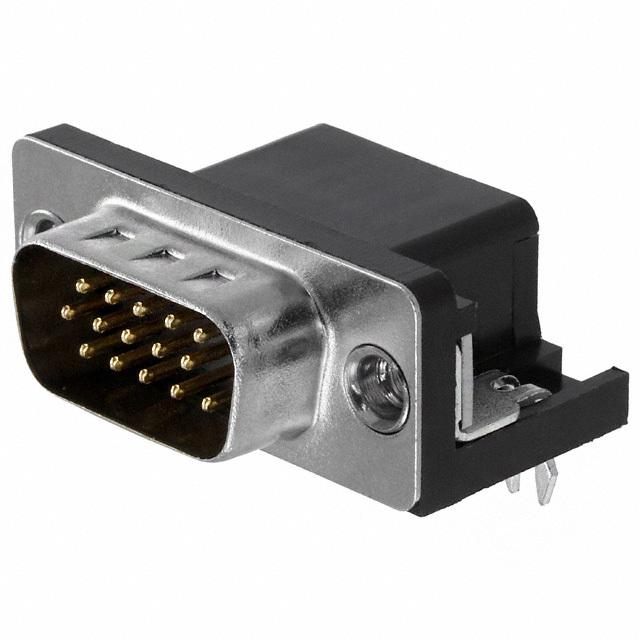

AHDS15A-KG-TAXB
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AHDS15A-KG-TAXB with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy AHDS15A-KG-TAXB with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | AHDS15A-KG-TAXB |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN DSUB HD PLUG 15POS R/A SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 60 pcs | 120 pcs |
|---|---|---|---|---|---|
| $0.434 | $0.383 | $0.36 | $0.346 | $0.33 | |
| 270 pcs | 510 pcs | 1020 pcs | 2520 pcs | ||
| $0.30 | $0.27 | $0.24 | $0.218 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | AHDS15A-KG-TAXB | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN DSUB HD PLUG 15POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 109968 pcs | Data sheet | AHDxxxA-KG-TAxB |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 250V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) High Density | Shell Material, Finish | Steel, Nickel Plated |
| Series | - | Packaging | Tray |
| Other Names | AE11036 AHDS15A-KG-TAXB-R AHDS15A-KG-TAXB-R-ND |
Operating Temperature | - |
| Number of Rows | 3 | Number of Positions | 15 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Housing/Shell (4-40) |
| Features | Board Lock, Grounding Indents | Detailed Description | 15 Position D-Sub, High Density Plug, Male Pins Connector |
| Current Rating | 3A | Contact Type | Signal |
| Contact Material | Brass | Contact Form | - |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub, High Density |
| Color | Black | Backset Spacing | 0.350" (8.89mm) |
