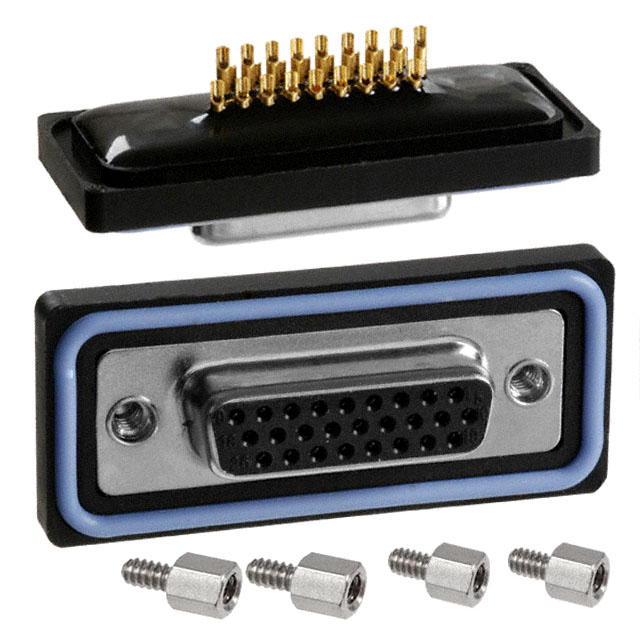

A-HDF 26 LL-WP
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A-HDF 26 LL-WP with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy A-HDF 26 LL-WP with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | A-HDF 26 LL-WP |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN D-SUB HD RCPT 26POS PNL MNT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 30 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $6.603 | $6.132 | $5.503 | $5.346 | ||
| 120 pcs | 270 pcs | 510 pcs | |||
| $4.717 | $4.402 | $4.308 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | A-HDF 26 LL-WP | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN D-SUB HD RCPT 26POS PNL MNT | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7339 pcs | Data sheet | A-HDF26LL-WP-R |
| Category | Connectors, Interconnects | Wire Gauge | 24-28 AWG |
| Voltage Rating | - | Termination | Solder Cup |
| Shell Size, Connector Layout | 2 (DA, A) High Density | Shell Material, Finish | - |
| Series | - | Packaging | Tray |
| Other Names | A-HDF26LL-WP A-HDF26LL-WP-R AE10126 AHDF26LLWPR |
Operating Temperature | - |
| Number of Rows | 3 | Number of Positions | 26 |
| Mounting Type | Panel Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | Flange Feature | Mating Side, Female Screwlock |
| Features | - | Detailed Description | 26 Position D-Sub, High Density Receptacle, Female Sockets Connector |
| Current Rating | - | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub, High Density |
| Color | Black | Backset Spacing | - |
