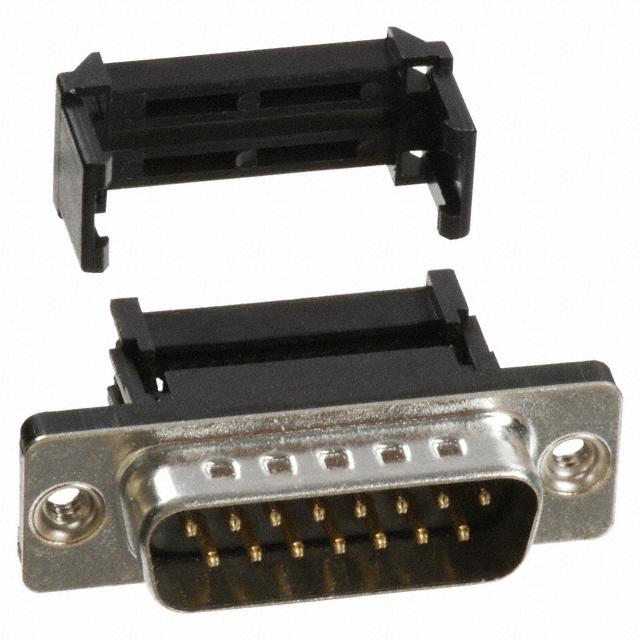

A-DSF 15LPIII/Z-UNC
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A-DSF 15LPIII/Z-UNC with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy A-DSF 15LPIII/Z-UNC with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | A-DSF 15LPIII/Z-UNC |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN D-SUB PLUG 15POS STR IDC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 72 pcs | 144 pcs |
|---|---|---|---|---|---|
| $0.87 | $0.79 | $0.742 | $0.71 | $0.678 | |
| 288 pcs | 504 pcs | 1008 pcs | 2520 pcs | ||
| $0.613 | $0.565 | $0.484 | $0.452 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | A-DSF 15LPIII/Z-UNC | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN D-SUB PLUG 15POS STR IDC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75492 pcs | Data sheet | A-DxFXXlPIII/Z-UNCD-Sub & Centronics Catalog |
| Category | Connectors, Interconnects | Wire Gauge | 26-28 AWG |
| Voltage Rating | 250V | Termination | IDC, Ribbon Cable |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | Steel, Tin Plated |
| Series | - | Packaging | Tray |
| Other Names | A-DSF-15LPIII/Z-UNC A-DSF15LPIII/Z-UNC-R ADSF15LPIIIZUNCR HMU15H |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Housing/Shell (4-40) |
| Features | Feed Through, Grounding Indents, Strain Relief | Detailed Description | 15 Position D-Sub Plug, Male Pins Connector |
| Current Rating | 3A | Contact Type | Signal |
| Contact Material | Copper Alloy | Contact Form | - |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
