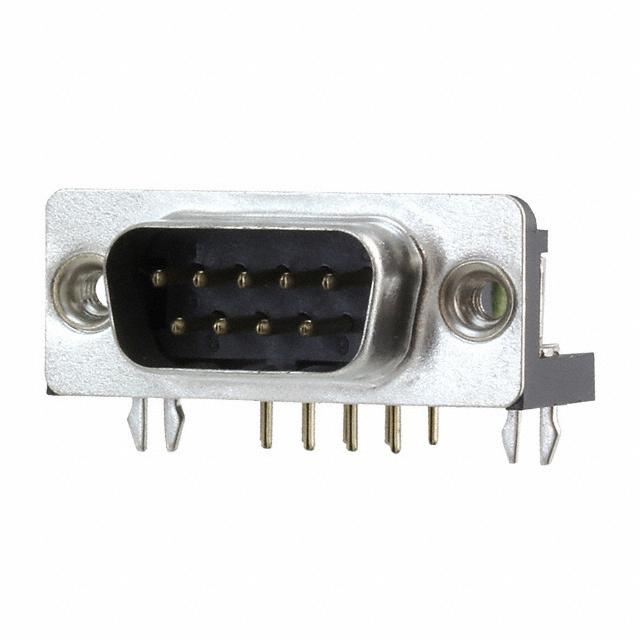

A-DS 09 A/KG-T4S
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A-DS 09 A/KG-T4S with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy A-DS 09 A/KG-T4S with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | A-DS 09 A/KG-T4S |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN D-SUB PLUG 9POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 90 pcs | 180 pcs |
|---|---|---|---|---|---|
| $0.284 | $0.268 | $0.241 | $0.214 | $0.205 | |
| 270 pcs | 540 pcs | 1080 pcs | 2520 pcs | ||
| $0.187 | $0.178 | $0.147 | $0.134 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | A-DS 09 A/KG-T4S | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN D-SUB PLUG 9POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 147595 pcs | Data sheet | A-Dz zzA/KG-Tzz Drawing |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 250V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Steel, Tin Plated |
| Series | - | Packaging | Tray |
| Other Names | A-DS-09-A/KG-T4S ADS09A-KG-TAXB3-R ADS09A-KG-TAXB3-R-ND AE10970 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Flange Feature | Housing/Shell (4-40) |
| Features | Board Lock, Grounding Indents | Detailed Description | 9 Position D-Sub Plug, Male Pins Connector |
| Current Rating | 3A | Contact Type | Signal |
| Contact Material | Brass | Contact Form | - |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | Black | Backset Spacing | 0.319" (8.10mm) |
