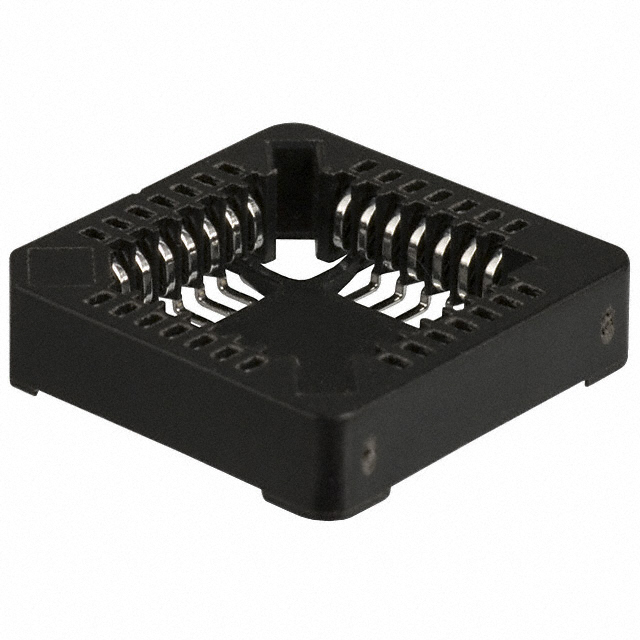

A-CCS28-Z-SM
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A-CCS28-Z-SM with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy A-CCS28-Z-SM with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | A-CCS28-Z-SM |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN SOCKET PLCC 28POS TIN |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | A-CCS28-Z-SM | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN SOCKET PLCC 28POS TIN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4583 pcs | Data sheet | A-CCSxx-Z-SM-R Drawing |
| Category | Connectors, Interconnects | Type | PLCC |
| Termination Post Length | 0.130" (3.30mm) | Termination | Solder |
| Series | - | Pitch - Post | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | A-CCS-28-Z-SM ACCS28ZSM AE7340 |
Operating Temperature | -55°C ~ 105°C |
| Number of Positions or Pins (Grid) | 28 (4 x 7) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Closed Frame | Current Rating | 1A |
| Contact Resistance | 30 mOhm | Contact Material - Post | Phosphor Bronze |
| Contact Material - Mating | Phosphor Bronze | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 150.0µin (3.81µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin |
