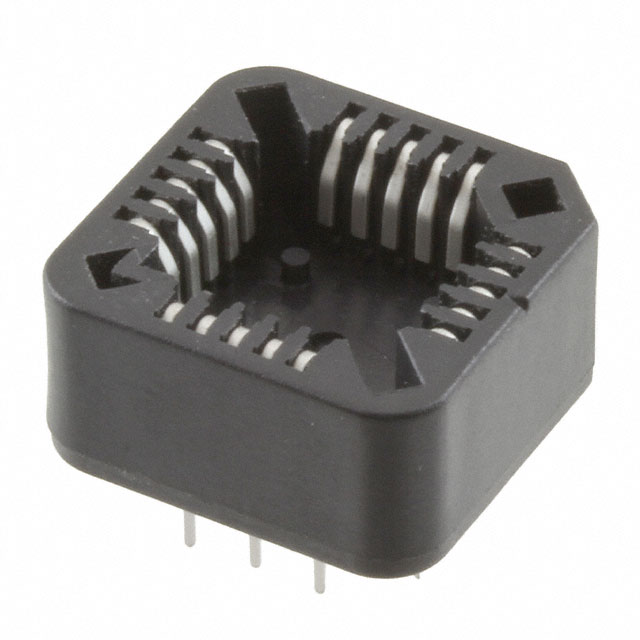

A-CCS 020-Z-T
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A-CCS 020-Z-T with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy A-CCS 020-Z-T with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | A-CCS 020-Z-T |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | IC SOCKET PLCC 20POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 39 pcs | 78 pcs | 117 pcs |
|---|---|---|---|---|---|
| $0.27 | $0.238 | $0.224 | $0.214 | $0.205 | |
| 273 pcs | 507 pcs | 1014 pcs | 2535 pcs | ||
| $0.186 | $0.168 | $0.149 | $0.135 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | A-CCS 020-Z-T | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | IC SOCKET PLCC 20POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 138432 pcs | Data sheet | A-CCS 0xx-Z-T Drawing |
| Category | Connectors, Interconnects | Type | PLCC |
| Termination Post Length | 0.132" (3.35mm) | Termination | Solder |
| Series | - | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | A-CCS-020-Z-T A-CCS-020-Z-T-ND AE11103 |
Operating Temperature | -40°C ~ 105°C |
| Number of Positions or Pins (Grid) | 20 (4 x 5) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 20 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polybutylene Terephthalate (PBT) | Features | Closed Frame |
| Current Rating | 1A | Contact Resistance | 15 mOhm |
| Contact Material - Post | Phosphor Bronze | Contact Material - Mating | Phosphor Bronze |
| Contact Finish Thickness - Post | 160.0µin (4.06µm) | Contact Finish Thickness - Mating | 160.0µin (4.06µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
