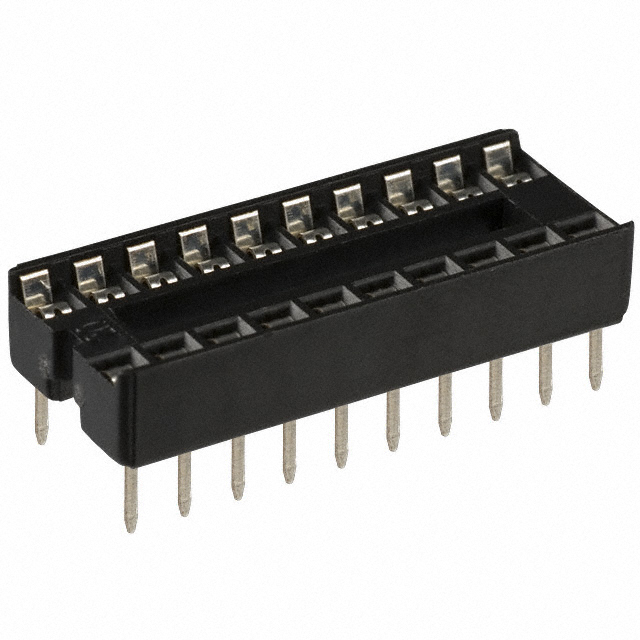

A 20-LC-TT
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy A 20-LC-TT with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy A 20-LC-TT with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | A 20-LC-TT |
|---|---|
| Manufacturer | ASSMANN WSW Components |
| Description | CONN IC DIP SOCKET 20POS TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 24 pcs | 48 pcs | 72 pcs | 120 pcs |
|---|---|---|---|---|---|
| $0.104 | $0.098 | $0.084 | $0.071 | $0.068 | |
| 264 pcs | 504 pcs | 1008 pcs | 2520 pcs | ||
| $0.061 | $0.059 | $0.049 | $0.045 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | A 20-LC-TT | Manufacturer | ASSMANN WSW Components |
|---|---|---|---|
| Description | CONN IC DIP SOCKET 20POS TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 530143 pcs | Data sheet | Axx-LC(7)-TT Drawing |
| Category | Connectors, Interconnects | Type | DIP, 0.3" (7.62mm) Row Spacing |
| Termination Post Length | 0.124" (3.15mm) | Termination | Solder |
| Series | - | Pitch - Post | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Other Names | A20-LC-TT A20-LC-TT-R A20LCTTR AE9998 |
Operating Temperature | -55°C ~ 85°C |
| Number of Positions or Pins (Grid) | 20 (2 x 10) | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 20 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polybutylene Terephthalate (PBT) | Features | Open Frame |
| Current Rating | 1A | Contact Resistance | 30 mOhm |
| Contact Material - Post | Phosphor Bronze | Contact Material - Mating | Phosphor Bronze |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
