SDS680R-103M

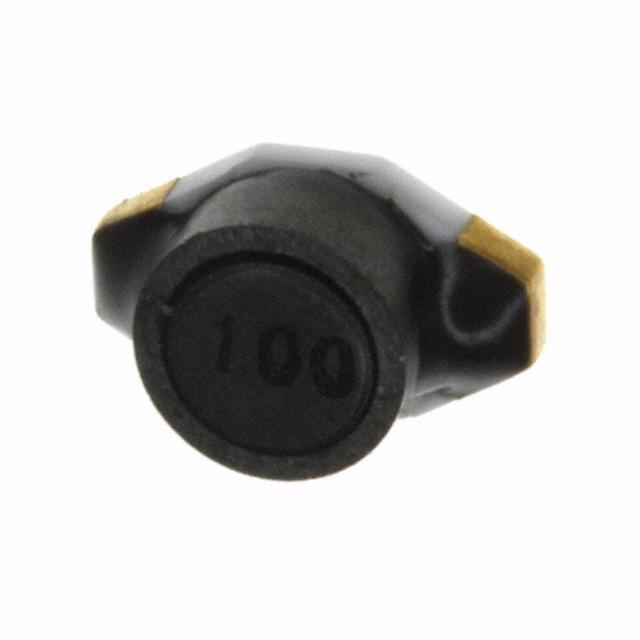

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy SDS680R-103M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy SDS680R-103M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | SDS680R-103M |
|---|---|
| Manufacturer | API Delevan |
| Description | FIXED IND 10UH 1A 75 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | 4000 pcs | 6000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.388 | $0.375 | $0.363 | $0.35 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | SDS680R-103M | Manufacturer | API Delevan |
|---|---|---|---|
| Description | FIXED IND 10UH 1A 75 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 66699 pcs | Data sheet | SDS680R |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.260" L x 0.175" W (6.60mm x 4.45mm) | Shielding | Shielded |
| Series | SDS680R | Ratings | - |
| Q @ Freq | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | DN7544-2 DN7544-2-ND DN7544TR SDS680R-103M TR 2000 SDS680R103M |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 15 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 100kHz | Inductance | 10µH |
| Height - Seated (Max) | 0.115" (2.92mm) | Frequency - Self Resonant | 38MHz |
| Detailed Description | 10µH Shielded Wirewound Inductor 1A 75 mOhm Max Nonstandard | DC Resistance (DCR) | 75 mOhm Max |
| Current Rating | 1A | Current - Saturation | - |
