Home > Products > Inductors, Coils, Chokes > Fixed Inductors > S4924-125K

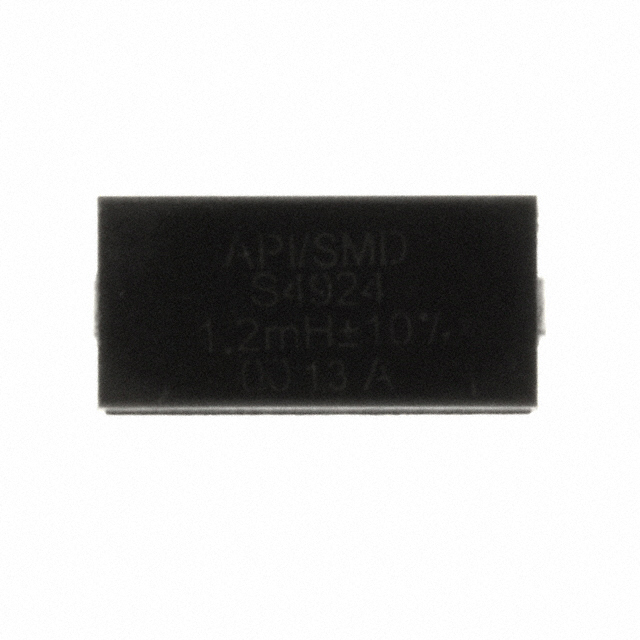

S4924-125K

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy S4924-125K with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	S4924-125K
Manufacturer	API Delevan
Description	FIXED IND 1.2MH 120MA 22.1 OHM
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant

~~In Stock~~ 34717 pcs
Reference Price (In US Dollars)	800 pcs
Reference Price (In US Dollars)	$1.01

Product parameter
Data sheet

Product parameter

Part Number	S4924-125K	Manufacturer	API Delevan
Description	FIXED IND 1.2MH 120MA 22.1 OHM	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	34717 pcs	Data sheet	S4924(R) Series
Category	Inductors, Coils, Chokes	Type	-
Tolerance	±10%	Supplier Device Package	-
Size / Dimension	0.505" L x 0.240" W (12.82mm x 6.09mm)	Shielding	Shielded
Series	S4924	Ratings	-
Q @ Freq	50 @ 250kHz	Packaging	Tape & Reel (TR)
Package / Case	Nonstandard	Other Names	S4924-125K TR 800 S4924-125KTR
Operating Temperature	-55°C ~ 125°C	Mounting Type	Surface Mount
Material - Core	Ferrite	Manufacturer Standard Lead Time	17 Weeks
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Inductance Frequency - Test	250kHz
Inductance	1.2mH	Height - Seated (Max)	0.220" (5.58mm)
Frequency - Self Resonant	3MHz	Detailed Description	1.2mH Shielded Inductor 120mA 22.1 Ohm Max Nonstandard
DC Resistance (DCR)	22.1 Ohm Max	Current Rating	120mA
Current - Saturation	28mA
