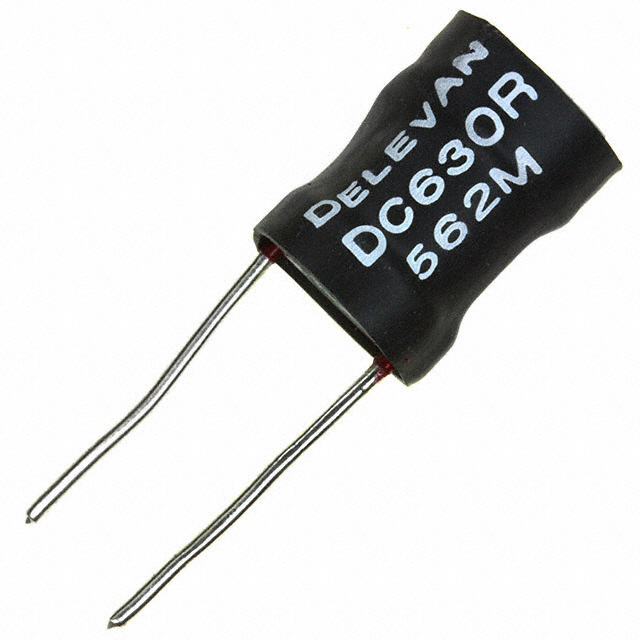

DC630R-562M
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy DC630R-562M with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy DC630R-562M with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | DC630R-562M |
|---|---|
| Manufacturer | API Delevan |
| Description | FIXED IND 5.6UH 11.7A 7 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | ||
|---|---|---|---|---|---|
| $2.061 | $1.875 | $1.275 | |||
| 500 pcs | 1000 pcs | 2500 pcs | |||
| $1.162 | $1.087 | $1.05 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | DC630R-562M | Manufacturer | API Delevan |
|---|---|---|---|
| Description | FIXED IND 5.6UH 11.7A 7 MOHM TH | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 31035 pcs | Data sheet | DC630(R) Series |
| Category | Inductors, Coils, Chokes | Type | Wirewound |
| Tolerance | ±20% | Supplier Device Package | - |
| Size / Dimension | 0.630" Dia (16.00mm) | Shielding | Unshielded |
| Series | DC630R | Ratings | - |
| Q @ Freq | - | Packaging | Bulk |
| Package / Case | Radial | Other Names | DC630R-562M BULK 100 DC630R562M DN4783 |
| Operating Temperature | -55°C ~ 125°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance Frequency - Test | 10kHz | Inductance | 5.6µH |
| Height - Seated (Max) | 0.830" (21.08mm) | Frequency - Self Resonant | - |
| Detailed Description | 5.6µH Unshielded Wirewound Inductor 11.7A 7 mOhm Max Radial | DC Resistance (DCR) | 7 mOhm Max |
| Current Rating | 11.7A | Current - Saturation | 29A |
