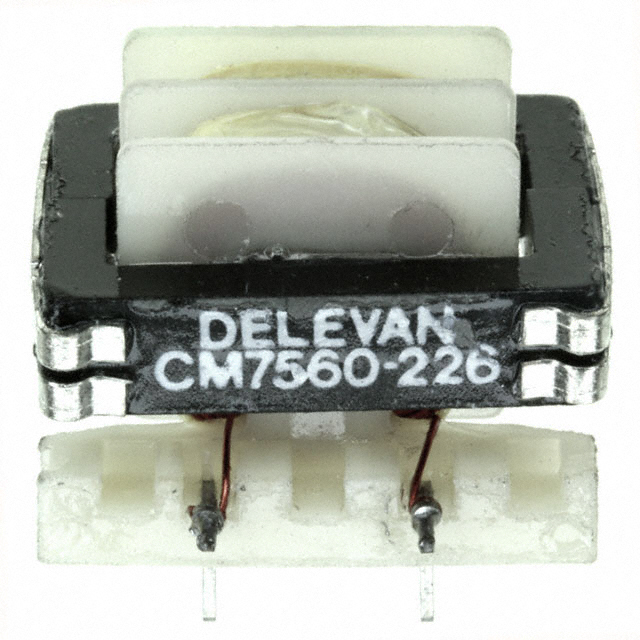

CM7560-226
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CM7560-226 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CM7560-226 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CM7560-226 |
|---|---|
| Manufacturer | API Delevan |
| Description | CMC 22MH 550MA 2LN TH |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $2.712 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CM7560-226 | Manufacturer | API Delevan |
|---|---|---|---|
| Description | CMC 22MH 550MA 2LN TH | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 14576 pcs | Data sheet | CM7560(R) Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 1.071" L x 0.858" W (27.20mm x 21.80mm) |
| Series | CM7560 | Ratings | - |
| Packaging | Bulk | Package / Case | Vertical, 4 PC Pin |
| Other Names | CM7560-226 BULK 25 | Operating Temperature | -55°C ~ 125°C |
| Number of Lines | 2 | Mounting Type | Through Hole |
| Manufacturer Standard Lead Time | 9 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Inductance @ Frequency | 22mH @ 1kHz | Height (Max) | 0.861" (21.86mm) |
| Filter Type | - | Features | - |
| Detailed Description | 22mH @ 1kHz 2 Line Common Mode Choke Through Hole 550mA DCR 1.5 Ohm | DC Resistance (DCR) (Max) | 1.5 Ohm |
| Current Rating (Max) | 550mA | Approvals | - |
