CM6296R-255

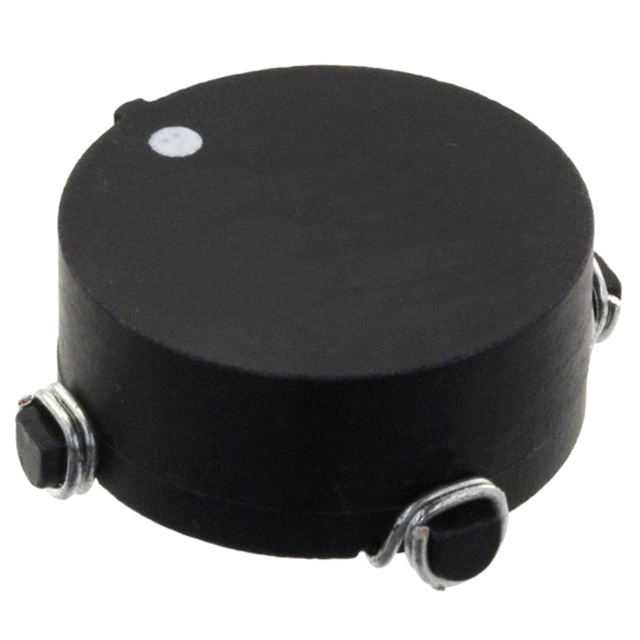

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy CM6296R-255 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy CM6296R-255 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | CM6296R-255 |
|---|---|
| Manufacturer | API Delevan |
| Description | CMC 2.5MH 2.2A 2LN SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 400 pcs | ||||
|---|---|---|---|---|---|
| $2.749 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | CM6296R-255 | Manufacturer | API Delevan |
|---|---|---|---|
| Description | CMC 2.5MH 2.2A 2LN SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13681 pcs | Data sheet | CM6296(R) Series |
| Category | Filters | Voltage Rating - DC | - |
| Voltage Rating - AC | - | Size / Dimension | 1.058" L x 1.058" W (26.87mm x 26.87mm) |
| Series | CM6296R | Ratings | - |
| Packaging | Bulk | Package / Case | Horizontal, 4 PC Pad |
| Other Names | CM6296R-255 BULK 25 CM6296R255 DN4725 |
Operating Temperature | -55°C ~ 125°C |
| Number of Lines | 2 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 5A (24 Hours) | Manufacturer Standard Lead Time | 9 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance @ Frequency | 2.5mH @ 1kHz |
| Height (Max) | 0.423" (10.74mm) | Filter Type | - |
| Features | - | Detailed Description | 2.5mH @ 1kHz 2 Line Common Mode Choke Surface Mount 2.2A DCR 162 mOhm |
| DC Resistance (DCR) (Max) | 162 mOhm | Current Rating (Max) | 2.2A |
| Approvals | - |
