5500R-105K

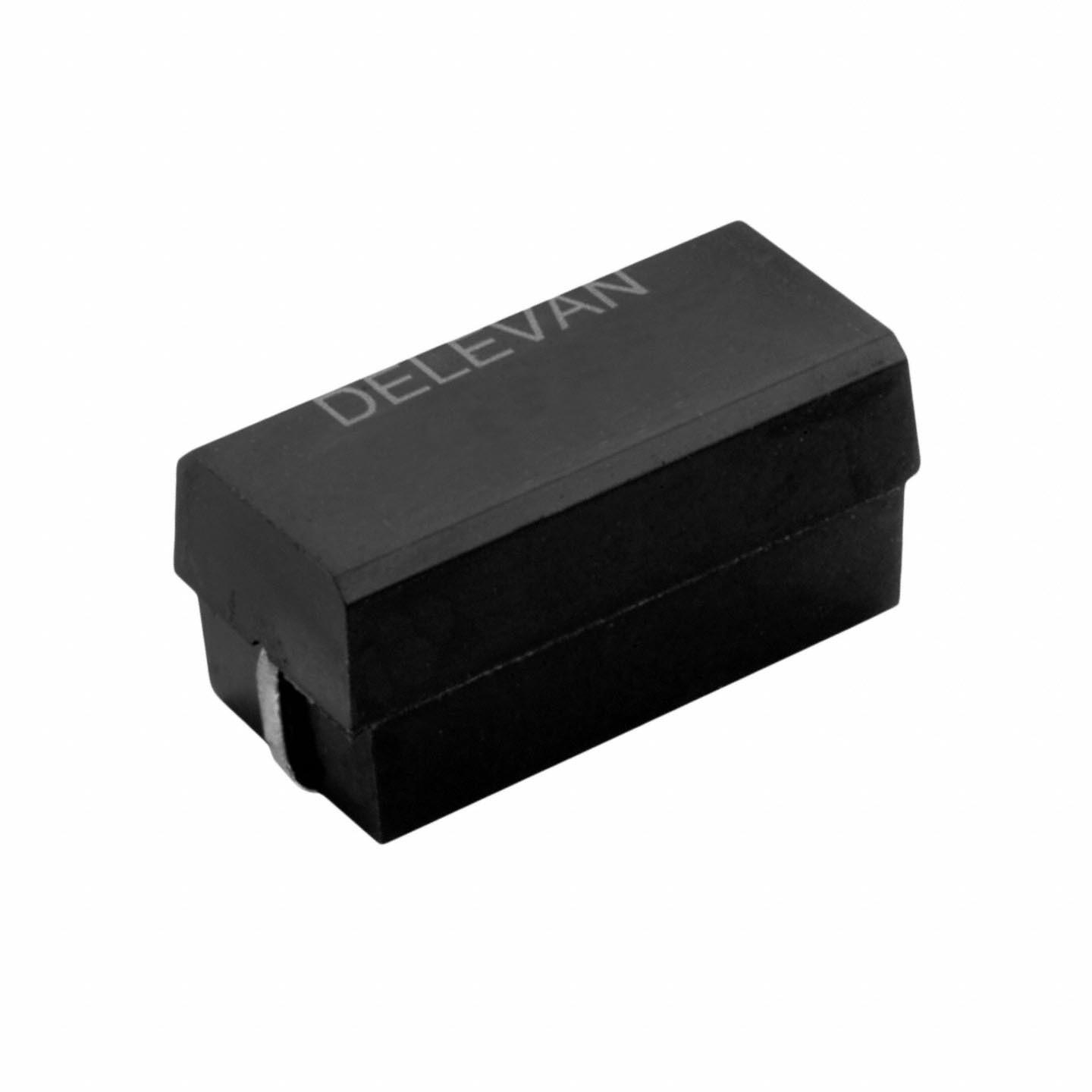

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 5500R-105K with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 5500R-105K with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 5500R-105K |
|---|---|
| Manufacturer | API Delevan |
| Description | FIXED IND 1MH 1.08A 844 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | |||
|---|---|---|---|---|---|
| $2.669 | $2.427 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 5500R-105K | Manufacturer | API Delevan |
|---|---|---|---|
| Description | FIXED IND 1MH 1.08A 844 MOHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12254 pcs | Data sheet | 5500(R) Series Datasheet |
| Category | Inductors, Coils, Chokes | Type | - |
| Tolerance | ±10% | Supplier Device Package | - |
| Size / Dimension | 1.050" L x 0.495" W (26.67mm x 12.57mm) | Shielding | Unshielded |
| Series | 5500R | Ratings | - |
| Q @ Freq | - | Packaging | Cut Tape (CT) |
| Package / Case | Nonstandard | Other Names | 5500R-105KCT |
| Operating Temperature | -55°C ~ 130°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Ferrite |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance Frequency - Test | 1kHz |
| Inductance | 1mH | Height - Seated (Max) | 0.520" (13.21mm) |
| Frequency - Self Resonant | - | Detailed Description | 1mH Unshielded Inductor 1.08A 844 mOhm Max Nonstandard |
| DC Resistance (DCR) | 844 mOhm Max | Current Rating | 1.08A |
| Current - Saturation | 560mA |
