2534-76L

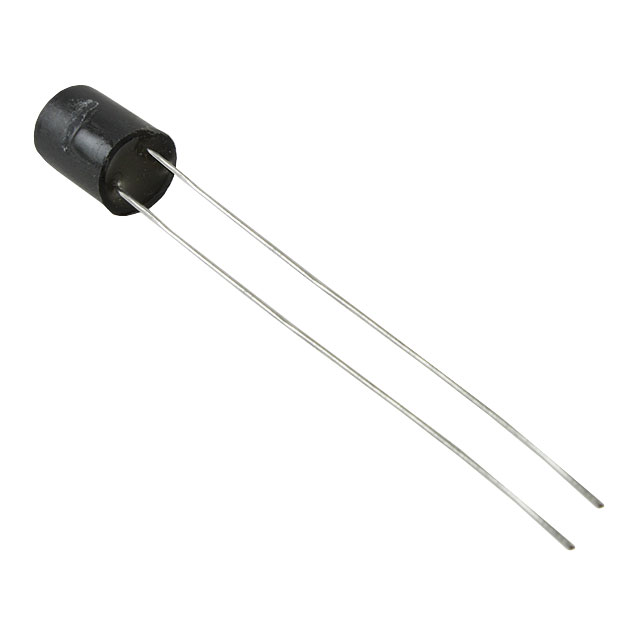

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2534-76L with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2534-76L with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2534-76L |
|---|---|
| Manufacturer | API Delevan |
| Description | FIXED IND 150MH 12MA 1.1 KOHM TH |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 500 pcs | ||||
|---|---|---|---|---|---|
| $1.633 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 2534-76L | Manufacturer | API Delevan |
|---|---|---|---|
| Description | FIXED IND 150MH 12MA 1.1 KOHM TH | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 21125 pcs | Data sheet | 2534(R) Series |
| Category | Inductors, Coils, Chokes | Type | Molded |
| Tolerance | ±15% | Supplier Device Package | - |
| Size / Dimension | 0.250" Dia (6.35mm) | Shielding | Unshielded |
| Series | 2534 | Ratings | - |
| Q @ Freq | 25 @ 50kHz | Packaging | Bulk |
| Package / Case | Radial | Other Names | 2534-76L BULK 50 |
| Operating Temperature | -55°C ~ 125°C | Mounting Type | Through Hole |
| Material - Core | Ferrite | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Inductance Frequency - Test | 50kHz |
| Inductance | 150mH | Height - Seated (Max) | 0.345" (8.76mm) |
| Frequency - Self Resonant | 100kHz | Detailed Description | 150mH Unshielded Molded Inductor 12mA 1.1 kOhm Max Radial |
| DC Resistance (DCR) | 1.1 kOhm Max | Current Rating | 12mA |
| Current - Saturation | - |
