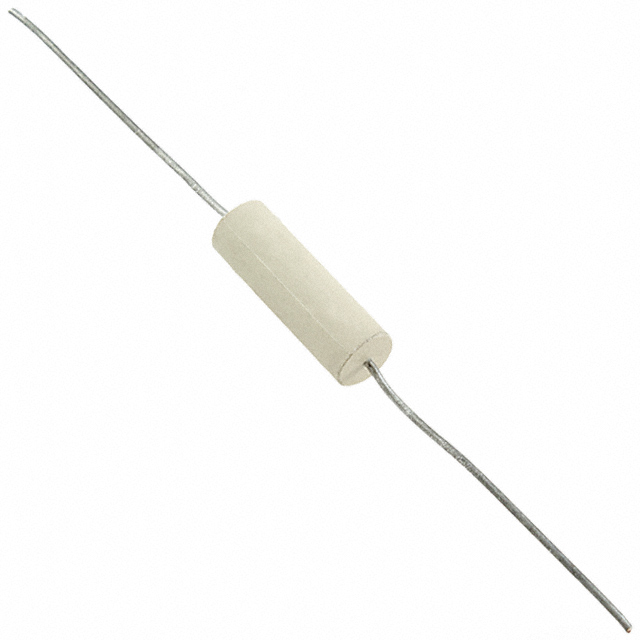

2500-76J
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 2500-76J with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 2500-76J with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 2500-76J |
|---|---|
| Manufacturer | API Delevan |
| Description | FIXED IND 10MH 48MA 72 OHM TH |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1000 pcs | 3000 pcs | |||
|---|---|---|---|---|---|
| $0.925 | $0.894 | ||||
- Product parameter
Product parameter
| Part Number | 2500-76J | Manufacturer | API Delevan |
|---|---|---|---|
| Description | FIXED IND 10MH 48MA 72 OHM TH | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 39348 pcs | Data sheet | |
| Category | Inductors, Coils, Chokes | Type | Molded |
| Tolerance | ±5% | Supplier Device Package | Axial |
| Size / Dimension | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | Shielding | Unshielded |
| Series | Military, MIL-PRF-M15305, MS90541 | Ratings | - |
| Q @ Freq | 80 @ 250kHz | Packaging | Tape & Reel (TR) |
| Package / Case | Axial | Other Names | 1134-1114 1134-1114-2 1134-1114-2-MIL 1134-1114-MIL 2500-76J TR 1000 2500-76J-1000 TR 250076J |
| Operating Temperature | -55°C ~ 105°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material - Core | Iron |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Inductance Frequency - Test | 250kHz | Inductance | 10mH |
| Height - Seated (Max) | - | Frequency - Self Resonant | 950kHz |
| Detailed Description | 10mH Unshielded Molded Inductor 48mA 72 Ohm Max Axial | DC Resistance (DCR) | 72 Ohm Max |
| Current Rating | 48mA | Current - Saturation | - |
