Home > Products > Switches > Toggle Switches > TL36W000050

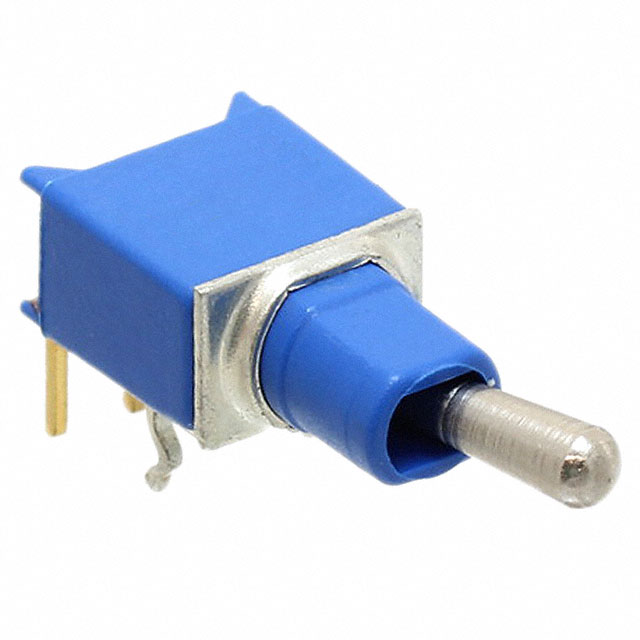

TL36W000050

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy TL36W000050 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	TL36W000050
Manufacturer	APEM Inc.
Description	SWITCH TOGGLE SPDT 0.4VA 20V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 17773 pcs
Reference Price (In US Dollars)	100 pcs
Reference Price (In US Dollars)	$1.766

Product parameter
Data sheet

Product parameter

Part Number	TL36W000050	Manufacturer	APEM Inc.
Description	SWITCH TOGGLE SPDT 0.4VA 20V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	17773 pcs	Data sheet	TL Series Datasheet
Category	Switches	Voltage Rating - DC	20V
Voltage Rating - AC	20V	Termination Style	PC Pin
Switch Function	On-On	Series	TL
Panel Cutout Dimensions	-	Packaging	Bulk
Operating Temperature	-30°C ~ 85°C	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Epoxy Sealed Terminals
Electrical Life	60,000 Cycles	Detailed Description	Toggle Switch SPDT Through Hole, Right Angle
Current Rating	0.4VA (AC/DC)	Circuit	SPDT
Bushing Thread	Unthreaded	Actuator Type	Standard Round
Actuator Material	Brass, Nickel Plated	Actuator Length	5.30mm
