Home > Products > Switches > Snap Action, Limit Switches > MWZ101C01C01X01

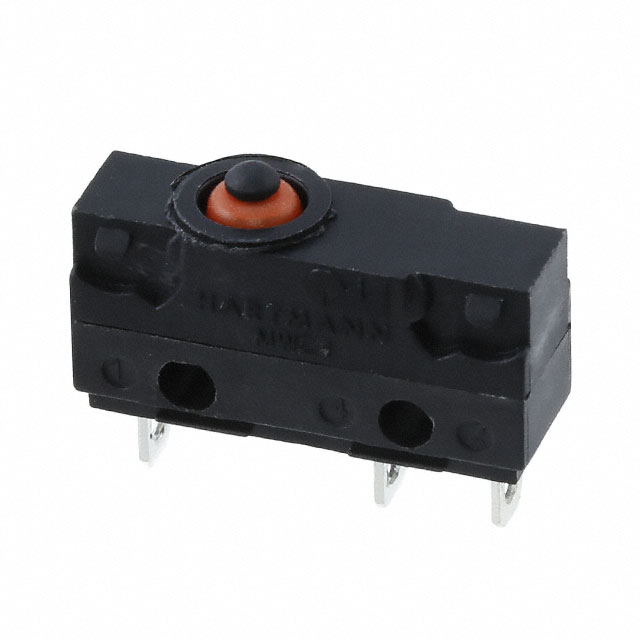

MWZ101C01C01X01

MWZ101C01C01X01

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy MWZ101C01C01X01 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	MWZ101C01C01X01
Manufacturer	APEM Inc.
Description	SWITCH SNAP ACTION SPDT 5A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 51558 pcs
Reference Price (In US Dollars)	1000 pcs
Reference Price (In US Dollars)	$0.736

Product parameter
Data sheet

Product parameter

Part Number	MWZ101C01C01X01	Manufacturer	APEM Inc.
Description	SWITCH SNAP ACTION SPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	51558 pcs	Data sheet	MWZ Series Datasheet
Category	Switches	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-Mom
Series	MWZ	Release Force	-
Pretravel	0.030" (0.8mm)	Packaging	Bulk
Overtravel	0.015" (0.4mm)	Other Names	679-3663
Operating Temperature	-40°C ~ 85°C	Operating Position	0.325" (8.25mm)
Operating Force	153gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Features	-
Electrical Life	50,000 Cycles	Differential Travel	0.004" (0.1mm)
Current Rating	5A (AC)	Circuit	SPDT
Actuator Type	Round (Pin Plunger)
