Home > Products > Switches > Pushbutton Switches > IMR7Z472234

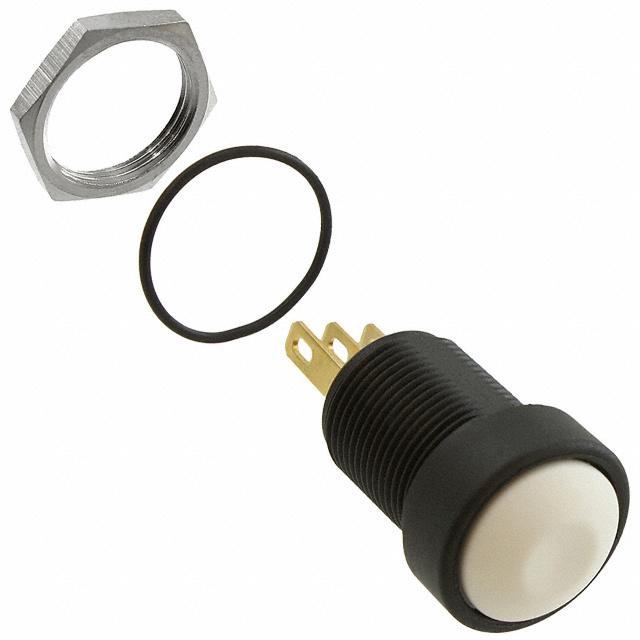

IMR7Z472234

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IMR7Z472234 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	IMR7Z472234
Manufacturer	APEM Inc.
Description	SWITCH PUSHBUTTON SPDT 3A 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 6214 pcs
Reference Price (In US Dollars)	50 pcs
Reference Price (In US Dollars)	$5.90

Product parameter
Data sheet

Product parameter

Part Number	IMR7Z472234	Manufacturer	APEM Inc.
Description	SWITCH PUSHBUTTON SPDT 3A 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6214 pcs	Data sheet	IM Series Datasheet
Category	Switches	Voltage Rating - DC	28V
Type	Standard	Termination Style	Quick Connect - 0.110" (2.8mm)
Switch Function	On-Mom	Series	IM
Panel Cutout Dimensions	Circular - 13.60mm Dia	Packaging	Bulk
Other Names	679-3191	Operating Temperature	-40°C ~ 85°C
Mounting Type	Panel Mount, Front	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	25,000 Cycles	Detailed Description	Pushbutton Switch SPDT Standard Panel Mount, Front
Current Rating	3A (DC)	Color - Actuator/Cap	White
Circuit	SPDT	Actuator Type	Round, Button, Domed
