Home > Products > Switches > Pushbutton Switches > IMR7Z422104

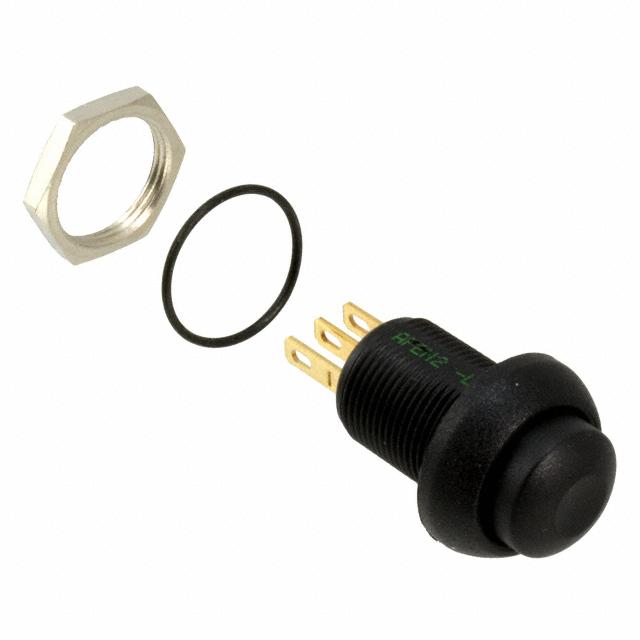

IMR7Z422104

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy IMR7Z422104 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	IMR7Z422104
Manufacturer	APEM Inc.
Description	SWITCH PUSHBUTTON SPDT 3A 28V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 7150 pcs
Reference Price (In US Dollars)	1 pcs	50 pcs	100 pcs	500 pcs	1000 pcs
Reference Price (In US Dollars)	$6.396	$5.773	$5.684	$4.885	$4.263

Product parameter
Data sheet

Product parameter

Part Number	IMR7Z422104	Manufacturer	APEM Inc.
Description	SWITCH PUSHBUTTON SPDT 3A 28V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7150 pcs	Data sheet	IM Series Datasheet
Category	Switches	Voltage Rating - DC	28V
Type	Standard	Termination Style	Quick Connect - 0.110" (2.8mm)
Switch Function	On-Mom	Series	IM
Panel Cutout Dimensions	Circular - 13.60mm Dia	Packaging	Bulk
Other Names	679-3266	Operating Temperature	-40°C ~ 85°C
Mounting Type	Panel Mount, Front	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	1,000,000 Cycles	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Features	Epoxy Sealed Terminals	Electrical Life	25,000 Cycles
Detailed Description	Pushbutton Switch SPDT Standard Panel Mount, Front	Current Rating	3A (DC)
Color - Actuator/Cap	Black	Circuit	SPDT
Actuator Type	Round, Button, Domed
