Home > Products > Switches > Pushbutton Switches > AV02820KMZQ

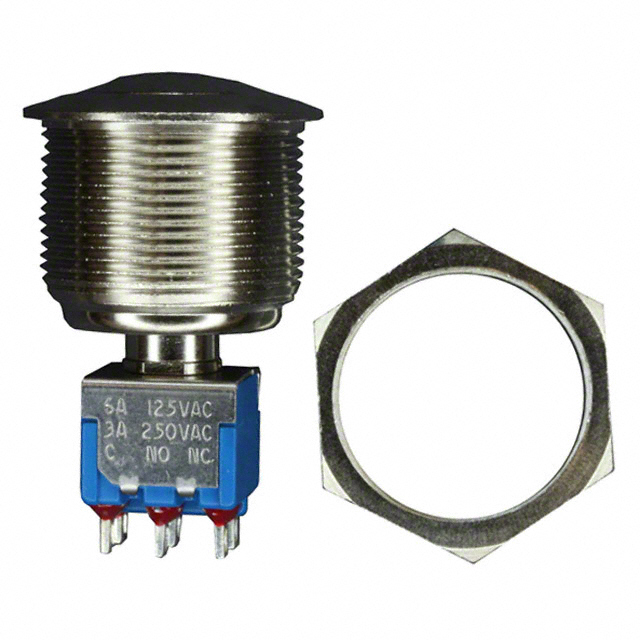

AV02820KMZQ

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy AV02820KMZQ with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number	AV02820KMZQ
Manufacturer	APEM Inc.
Description	SWITCH PUSHBUTTON DPDT 6A 125V
Lead Free Status / RoHS Status	Lead free / RoHS Compliant

~~In Stock~~ 3162 pcs
Reference Price (In US Dollars)	100 pcs
Reference Price (In US Dollars)	$9.67

Product parameter
Data sheet

Product parameter

Part Number	AV02820KMZQ	Manufacturer	APEM Inc.
Description	SWITCH PUSHBUTTON DPDT 6A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3162 pcs	Data sheet	AV02820KMZQ Drawing
Category	Switches	Voltage Rating - AC	125V
Type	Vandal Resistant	Termination Style	Solder Lug
Switch Function	On-Mom	Series	AV
Panel Cutout Dimensions	Circular - 22.20mm Dia	Packaging	Bulk
Other Names	679-1065	Operating Temperature	-30°C ~ 80°C
Mounting Type	Panel Mount, Front	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP54 - Dust Protected, Water Resistant	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	-
Electrical Life	60,000 Cycles	Detailed Description	Pushbutton Switch DPDT Vandal Resistant Panel Mount, Front
Current Rating	6A (AC)	Color - Actuator/Cap	Silver
Circuit	DPDT	Actuator Type	Round, Button, Domed
